| 产品型号 | 内核类型 | 主频 [Max] (MHz) | 内核数量 (SPEC) | 协处理器类型 | 协处理器主频 (MAX) (MHz) | L2 Cache (Max)(KB) | SRAM (kB) | 支持的外部存储 | PCIe 2.0 | Ethernet | SPI | I2C | UART | USB | CAN | 音频特定模块 | 视频/显示功能 | 硬件视频编码器/解码器 | GPU 2D / GPU 3D | 封装类型 | 引脚间距 (mm) | 工作温度 (Min) (℃) | 工作温度 (Max) (℃) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MCIMX6Z0DVM09AB | Arm® Cortex®-A7 | 900 | 1 | 128 | 128 | DDR3SDRAM,DDR3L SDRAM,LPDDR2 DRAM | 0 | 0 | 2 | 2 | 4 | 2 | 0 | LFBGA289 | 0.8 | 0 | 95 | ||||||
| MCIMX6Y0CVM05AB | Arm® Cortex®-A7 | 528 | 1 | - | 256 | DDR3SDRAM, DDR3L SDRAM, LPDDR2 DRAM | 0 | 1x 10/100 BaseT | 2 | 2 | 4 | 1 | 0 | LFBGA289 | 0.8 | -40 | 105 | ||||||
| MCIMX6Y0DVM05AB | Arm® Cortex®-A7 | 528 | 1 | - | 256 | DDR3SDRAM, DDR3L SDRAM, LPDDR2 DRAM | 0 | 1x 10/100 BaseT | 2 | 2 | 4 | 1 | 0 | LFBGA289 | 0.8 | 0 | 95 | ||||||
| MCIMX6Y1CVK05AB | Arm® Cortex®-A7 | 528 | 1 | - | 256 | DDR3SDRAM, DDR3L SDRAM, LPDDR2 DRAM | 0 | 1x 10/100 BaseT | 4 | 4 | 8 | 2 | 1 | LFBGA272 | 0.5 | -40 | 105 | ||||||
| MCIMX6Y1CVM05AB | Arm® Cortex®-A7 | 528 | 1 | - | 256 | DDR3SDRAM, DDR3L SDRAM, LPDDR2 DRAM | 0 | 1x 10/100 BaseT | 4 | 4 | 8 | 2 | 1 | LFBGA289 | 0.8 | -40 | 105 | ||||||
| MCIMX6Y1DVK05AB | Arm® Cortex®-A7 | 528 | 1 | - | 256 | DDR3SDRAM, DDR3L SDRAM, LPDDR2 DRAM | 0 | 1x 10/100 BaseT | 4 | 4 | 8 | 2 | 1 | LFBGA272 | 0.5 | 0 | 95 | ||||||
| MCIMX6Y1DVM05AB | Arm® Cortex®-A7 | 528 | 1 | - | 256 | DDR3SDRAM, DDR3L SDRAM, LPDDR2 DRAM | 0 | 1x 10/100 BaseT | 4 | 4 | 8 | 2 | 1 | LFBGA289 | 0.8 | 0 | 95 | ||||||
| MCIMX6Y2CVK08AB | Arm® Cortex®-A7 | 800 | 1 | 128 | DDR3SDRAM, DDR3L SDRAM, LPDDR2 DRAM | 0 | 2x 10/100 BaseT | 4 | 4 | 8 | 2 | 2 | SPDIF | LFBGA272 | 0.5 | -40 | 105 | ||||||
| MCIMX6Y2CVM05AB | Arm® Cortex®-A7 | 528 | 1 | - | 256 | DDR3SDRAM, DDR3L SDRAM, LPDDR2 DRAM | 0 | 2x 10/100 BaseT | 4 | 4 | 8 | 2 | 2 | RGB | LFBGA289 | 0.8 | -40 | 105 | |||||
| MCIMX6Y2CVM08AB | Arm® Cortex®-A7 | 800 | 1 | - | 256 | DDR3SDRAM, DDR3L SDRAM, LPDDR2 DRAM | 0 | 2x 10/100 BaseT | 4 | 4 | 8 | 2 | 2 | RGB | LFBGA289 | 0.8 | -40 | 105 | |||||
| MCIMX6Y2DVK09AB | Arm® Cortex®-A7 | 900 | 1 | 128 | 128 | DDR3SDRAM, DDR3L SDRAM, LPDDR2 DRAM | 0 | 2x 10/100 BaseT | 4 | 4 | 8 | 2 | 2 | SPDIF | LFBGA272 | 0.5 | 0 | 95 | |||||
| MCIMX6Y2DVM05AB | Arm® Cortex®-A7 | 528 | 1 | - | 256 | DDR3SDRAM, DDR3L SDRAM, LPDDR2 DRAM | 0 | 2x 10/100 BaseT | 4 | 4 | 8 | 2 | 2 | RGB | LFBGA289 | 0.8 | 0 | 95 | |||||
| MCIMX6Y2DVM09AB | Arm® Cortex®-A7 | 900 | 1 | - | 256 | DDR3SDRAM, DDR3L SDRAM, LPDDR2 DRAM | 0 | 2x 10/100 BaseT | 4 | 4 | 8 | 2 | 2 | LFBGA289 | 0.8 | 0 | 95 | ||||||
| MCIMX6Y7DVK05AB | Arm® Cortex®-A7 | 528 | 1 | 128 | 128 | DDR3SDRAM, DDR3L SDRAM, LPDDR2 DRAM | 0 | 1x 10/100 BaseT | 4 | 4 | 8 | 2 | 2 | SPDIF | LFBGA272 | 0.5 | 0 | 95 | |||||
| MCIMX6Y7DVM09AB | Arm® Cortex®-A7 | 900 | 1 | 128 | 128 | DDR3SDRAM, DDR3L SDRAM, LPDDR2 DRAM | 0 | 1x 10/100 BaseT | 4 | 4 | 8 | 2 | 2 | SPDIF | LFBGA289 | 0.8 | 0 | 95 | |||||
| MCIMX6G0DVM05AB | Arm® Cortex®-A7 | 528 | 1 | 128 | DDR3SDRAM, DDR3L SDRAM, LPDDR2 DRAM | 0 | 1x 10/100 BaseT | 2 | 2 | 4 | 1 | 0 | SPDIF | LFBGA289 | 0.8 | 0 | 95 | ||||||
| MCIMX6G1AVM05AB | Arm® Cortex®-A7 | 528 | 1 | 128 | 128 | DDR3SDRAM, DDR3L SDRAM, LPDDR2 DRAM | 0 | 1x 10/100 BaseT | 4 | 4 | 8 | 2 | 1 | SPDIF | LFBGA289 | 0.8 | -40 | 125 | |||||
| MCIMX6G1AVM07AB | Arm® Cortex®-A7 | 696 | 1 | 128 | 128 | DDR3SDRAM, DDR3L SDRAM, LPDDR2 DRAM | 0 | 1x 10/100 BaseT | 4 | 4 | 8 | 2 | 1 | SPDIF | LFBGA289 | 0.8 | -40 | 125 | |||||
| MCIMX6G1CVM05AB | Arm® Cortex®-A7 | 528 | 1 | 128 | 128 | DDR3SDRAM, DDR3L SDRAM, LPDDR2 DRAM | 0 | 1x 10/100 BaseT | 4 | 4 | 8 | 2 | 1 | SPDIF | LFBGA289 | 0.8 | -40 | 105 | |||||
| MCIMX6G2AVM05AB | Arm® Cortex®-A7 | 528 | 1 | 128 | 128 | DDR3SDRAM, DDR3L SDRAM, LPDDR2 DRAM | 0 | 2x 10/100 BaseT | 4 | 4 | 8 | 2 | 2 | SPDIF | PCP,RGB | LFBGA289 | 0.8 | -40 | 125 | ||||
| MCIMX6G2AVM07AB | Arm® Cortex®-A7 | 696 | 1 | 128 | 128 | DDR3SDRAM, DDR3L SDRAM, LPDDR2 DRAM | 0 | 2x 10/100 BaseT | 4 | 4 | 8 | 2 | 2 | SPDIF | PCP,RGB | LFBGA289 | 0.8 | -40 | 125 | ||||
| MCIMX6G2CVK05AB | Arm® Cortex®-A7 | 528 | 1 | 128 | 128 | DDR3SDRAM, DDR3L SDRAM, LPDDR2 DRAM | 0 | 2x 10/100 BaseT | 4 | 4 | 8 | 2 | 2 | SPDIF | PCP,RGB | LFBGA272 | 0.5 | -40 | 105 | ||||
| MCIMX6G2CVM05AB | Arm® Cortex®-A7 | 528 | 1 | 128 | 128 | DDR3SDRAM, DDR3L SDRAM, LPDDR2 DRAM | 0 | 2x 10/100 BaseT | 4 | 4 | 8 | 2 | 2 | SPDIF | PCP,RGB | LFBGA289 | 0.8 | -40 | 105 | ||||
| MCIMX6G2DVK05AB | Arm® Cortex®-A7 | 528 | 1 | 128 | 128 | DDR3SDRAM, DDR3L SDRAM, LPDDR2 DRAM | 0 | 2x 10/100 BaseT | 4 | 4 | 8 | 2 | 2 | SPDIF | PCP,RGB | LFBGA272 | 0.5 | 0 | 95 | ||||
| MCIMX6G2DVM05AB | Arm® Cortex®-A7 | 528 | 1 | 128 | 128 | DDR3SDRAM, DDR3L SDRAM, LPDDR2 DRAM | 0 | 2x 10/100 BaseT | 4 | 4 | 8 | 2 | 2 | SPDIF | PCP,RGB | LFBGA289 | 0.8 | 0 | 95 | ||||
| MCIMX6G3CVK05AB | Arm® Cortex®-A7 | 528 | 1 | 128 | 128 | DDR3SDRAM, DDR3L SDRAM, LPDDR2 DRAM | 0 | 2x 10/100 BaseT | 4 | 4 | 8 | 2 | 2 | SPDIF | PCP,RGB | LFBGA272 | 0.5 | -40 | 105 | ||||
| MCIMX6G3CVM05AB | Arm® Cortex®-A7 | 528 | 1 | 128 | 128 | DDR3SDRAM, DDR3L SDRAM, LPDDR2 DRAM | 0 | 2x 10/100 BaseT | 4 | 4 | 8 | 2 | 2 | SPDIF | PCP,RGB | LFBGA289 | 0.8 | -40 | 105 | ||||
| MCIMX6G3DVK05AB | Arm® Cortex®-A7 | 528 | 1 | 128 | 128 | DDR3SDRAM, DDR3L SDRAM, LPDDR2 DRAM | 0 | 2x 10/100 BaseT | 4 | 4 | 8 | 2 | 2 | SPDIF | PCP,RGB | LFBGA272 | 0.5 | 0 | 95 | ||||
| MCIMX6V2CVM08AB | Arm® Cortex®-A9 | 800 | 1 | 256 | 128 | LPDDR2DRAM, LPDDR3 DRAM | 0 | - | 4 | 3 | 5 | 2 | 0 | SPDIF | PCP,RGB | LFBGA400 | 0.65 | -40 | 105 | ||||
| MCIMX6V7DVN10AB | Arm® Cortex®-A9 | 1000 | 1 | 256 | 128 | LPDDR2DRAM, LPDDR3 DRAM | 0 | - | 4 | 3 | 5 | 2 | 0 | SPDIF | E-paperdisplay, PCP, RGB | TFBGA432 | 0.5 | 0 | 95 | ||||
| MCIMX6L2DVN10AC | Arm® Cortex®-A9 | 1000 | 1 | 256 | 128 | DDR3SDRAM, DDR3L SDRAM, LPDDR2 DRAM | 0 | 1x 10/100 BaseT | 4 | 3 | 5 | 3 | 0 | SPDIF | PCP | TFBGA432 | 0.5 | 0 | 95 | ||||
| MCIMX6L2EVN10AC | Arm® Cortex®-A9 | 1000 | 1 | 256 | 128 | DDR3SDRAM, DDR3L SDRAM, LPDDR2 DRAM | 0 | 1x 10/100 BaseT | 4 | 3 | 5 | 3 | 0 | SPDIF | PCP | TFBGA432 | 0.5 | -40 | 105 | ||||
| MCIMX6L3DVN10AC | Arm® Cortex®-A9 | 1000 | 1 | 256 | 128 | DDR3SDRAM, DDR3L SDRAM, LPDDR2 DRAM | 0 | 1x 10/100 BaseT | 4 | 3 | 5 | 3 | 0 | SPDIF | PCP | VivanteGC320 (600Mpx/s), Vivante GC355 (300Mpx/s) | TFBGA432 | 0.5 | 0 | 95 | |||
| MCIMX6L3EVN10AC | Arm® Cortex®-A9 | 1000 | 1 | 256 | 128 | DDR3SDRAM, DDR3L SDRAM, LPDDR2 DRAM | 0 | 1x 10/100 BaseT | 4 | 3 | 5 | 3 | 0 | SPDIF | PCP | VivanteGC320 (600Mpx/s), Vivante GC355 (300Mpx/s) | TFBGA432 | 0.5 | -40 | 105 | |||
| MCIMX6L7DVN10AC | Arm® Cortex®-A9 | 1000 | 1 | 256 | 128 | DDR3SDRAM, DDR3L SDRAM, LPDDR2 DRAM | 0 | 1x 10/100 BaseT | 4 | 3 | 5 | 3 | 0 | SPDIF | PCP | TFBGA432 | 0.5 | 0 | 95 | ||||
| MCIMX6L8DVN10AC | Arm® Cortex®-A9 | 1000 | 1 | 256 | 128 | DDR3SDRAM, DDR3L SDRAM, LPDDR2 DRAM | 0 | 1x 10/100 BaseT | 4 | 3 | 5 | 3 | 0 | SPDIF | PCP | VivanteGC320 (600Mpx/s), Vivante GC355 (300Mpx/s) | TFBGA432 | 0.5 | 0 | 95 | |||
| MCIMX6X1AVO08AC | Arm® Cortex®-A9 | 800 | 1 | Arm® Cortex®-M4F | 200 | 256 | 128 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NOR FLASH, ONFI2.2, QSPI | 0 | 1x AVB, 2 x 1 Gbps + IEEE 1588 | 5 | 4 | 6 | 3 | 2 | AA,ESAI | PCP | LFBGA400 | 0.8 | -40 | 125 | ||
| MCIMX6X1CVK08AC | Arm® Cortex®-A9 | 800 | 1 | Arm® Cortex®-M4F | 200 | 256 | 128 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NOR FLASH, ONFI2.2, QSPI | 0 | 1x AVB, 2 x 1 Gbps + IEEE 1588 | 5 | 4 | 6 | 3 | 2 | AA,ESAI, SPDIF | PCP | LFBGA400 | 0.65 | -40 | 105 | ||
| MCIMX6X1CVO08AC | Arm® Cortex®-A9 | 800 | 1 | Arm® Cortex®-M4F | 200 | 256 | 128 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NOR FLASH, ONFI2.2, QSPI | 0 | 1x AVB, 2 x 1 Gbps + IEEE 1588 | 5 | 4 | 6 | 3 | 2 | AA,ESAI, SPDIF | PCP | LFBGA400 | 0.8 | -40 | 105 | ||
| MCIMX6X1EVK10AC | Arm® Cortex®-A9 | 1000 | 1 | Arm® Cortex®-M4F | 200 | 256 | 128 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NOR FLASH, ONFI2.2, QSPI | 0 | 1x AVB, 2 x 1 Gbps + IEEE 1588 | 5 | 4 | 6 | 3 | 2 | AA,ESAI, SPDIF | PCP | LFBGA400 | 0.65 | -20 | 105 | ||
| MCIMX6X1EVO10AC | Arm® Cortex®-A9 | 1000 | 1 | Arm® Cortex®-M4F | 200 | 256 | 128 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NOR FLASH, ONFI2.2, QSPI | 0 | 1x AVB, 2 x 1 Gbps + IEEE 1588 | 5 | 4 | 6 | 3 | 2 | AA,ESAI, SPDIF | PCP | LFBGA400 | 0.8 | -20 | 105 | ||
| MCIMX6X2AVN08AC | Arm® Cortex®-A9 | 800 | 1 | Arm® Cortex®-M4F | 200 | 256 | 128 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NOR FLASH, ONFI2.2, QSPI | 1 | 1x AVB, 2 x 1 Gbps + IEEE 1588 | 5 | 4 | 6 | 3 | 2 | AA,ESAI | PCP | LFBGA400 | 0.8 | -40 | 125 | ||
| MCIMX6X2CVN08AC | Arm® Cortex®-A9 | 800 | 1 | Arm® Cortex®-M4F | 200 | 256 | 128 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NOR FLASH, ONFI2.2, QSPI | 1 | 1x AVB, 2 x 1 Gbps + IEEE 1588 | 5 | 4 | 6 | 3 | 2 | AA,ESAI, SPDIF | PCP | LFBGA400 | 0.8 | -40 | 105 | ||
| MCIMX6X2EVN10AB | Arm® Cortex®-A9 | 1000 | 1 | Arm® Cortex®-M4F | 200 | 256 | 128 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NAND FLASH, NOR FLASH, ONFI2.2, QSPI | 1 | 1x AVB, 2 x 1 Gbps + IEEE 1588 | 5 | 4 | 6 | 3 | 2 | AA,ESAI, SPDIF | PCP,RGB | LFBGA400 | 0.8 | -20 | 105 | ||
| MCIMX6X2EVN10AC | Arm® Cortex®-A9 | 1000 | 1 | Arm® Cortex®-M4F | 200 | 256 | 128 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NOR FLASH, ONFI2.2, QSPI | 1 | 1x AVB, 2 x 1 Gbps + IEEE 1588 | 5 | 4 | 6 | 3 | 2 | AA,ESAI, SPDIF | PCP | LFBGA400 | 0.8 | -20 | 105 | ||
| MCIMX6X3CVN08AC | Arm® Cortex®-A9 | 800 | 1 | Arm® Cortex®-M4F | 200 | 256 | 128 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NOR FLASH, ONFI2.2, QSPI | 1 | 1x AVB, 2 x 1 Gbps + IEEE 1588 | 5 | 4 | 6 | 3 | 2 | AA,ESAI, SPDIF | PCP | VivanteGC300 (300Mpx/s), Vivante GC400T (17Mtri/s) | LFBGA400 | 0.8 | -40 | 105 | |
| MCIMX6X3CVO08AC | Arm® Cortex®-A9 | 800 | 1 | Arm® Cortex®-M4F | 200 | 256 | 128 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NOR FLASH, ONFI2.2, QSPI | 0 | 1x AVB, 2 x 1 Gbps + IEEE 1588 | 5 | 4 | 6 | 3 | 2 | AA,ESAI, SPDIF | PCP | VivanteGC300 (300Mpx/s), Vivante GC400T (17Mtri/s) | LFBGA400 | 0.8 | -40 | 105 | |
| MCIMX6X3EVK10AC | Arm® Cortex®-A9 | 1000 | 1 | Arm® Cortex®-M4F | 200 | 256 | 128 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NOR FLASH, ONFI2.2, QSPI | 0 | 1x AVB, 2 x 1 Gbps + IEEE 1588 | 5 | 4 | 6 | 3 | 2 | AA,ESAI, SPDIF | PCP | VivanteGC300 (300Mpx/s), Vivante GC400T (17Mtri/s) | LFBGA400 | 0.65 | -20 | 105 | |
| MCIMX6X3EVN10AC | Arm® Cortex®-A9 | 1000 | 1 | Arm® Cortex®-M4F | 200 | 256 | 128 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NOR FLASH, ONFI2.2, QSPI | 1 | 1x AVB, 2 x 1 Gbps + IEEE 1588 | 5 | 4 | 6 | 3 | 2 | AA,ESAI, SPDIF | PCP | VivanteGC300 (300Mpx/s), Vivante GC400T (17Mtri/s) | LFBGA400 | 0.8 | -20 | 105 | |
| MCIMX6X3EVO10AC | Arm® Cortex®-A9 | 1000 | 1 | Arm® Cortex®-M4F | 200 | 256 | 128 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NOR FLASH, ONFI2.2, QSPI | 0 | 1x AVB, 2 x 1 Gbps + IEEE 1588 | 5 | 4 | 6 | 3 | 2 | AA,ESAI, SPDIF | PCP | VivanteGC300 (300Mpx/s), Vivante GC400T (17Mtri/s) | LFBGA400 | 0.8 | -20 | 105 | |
| MCIMX6X4AVM08AC | Arm® Cortex®-A9 | 800 | 1 | Arm® Cortex®-M4F | 200 | 256 | 128 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NOR FLASH, ONFI2.2, QSPI | 1 | 1x AVB, 2 x 1 Gbps + IEEE 1588 | 5 | 4 | 6 | 3 | 2 | AA,ESAI | PCP | VivanteGC300 (300Mpx/s), Vivante GC400T (17Mtri/s) | LFBGA529 | 0.8 | -40 | 125 | |
| MCIMX6X4CVM08AC | Arm® Cortex®-A9 | 800 | 1 | Arm® Cortex®-M4F | 200 | 256 | 128 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NOR FLASH, ONFI2.2, QSPI | 1 | 1x AVB, 2 x 1 Gbps + IEEE 1588 | 5 | 4 | 6 | 3 | 2 | AA,ESAI, SPDIF | PCP | VivanteGC300 (300Mpx/s), Vivante GC400T (17Mtri/s) | LFBGA529 | 0.8 | -40 | 105 | |
| MCIMX6X4EVM10AC | Arm® Cortex®-A9 | 1000 | 1 | Arm® Cortex®-M4F | 200 | 256 | 128 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NOR FLASH, ONFI2.2, QSPI | 1 | 1x AVB, 2 x 1 Gbps + IEEE 1588 | 5 | 4 | 6 | 3 | 2 | AA,ESAI, SPDIF | PCP | VivanteGC300 (300Mpx/s), Vivante GC400T (17Mtri/s) | LFBGA529 | 0.8 | -20 | 105 | |
| MCIMX6S1AVM08AD | Arm® Cortex®-A9 | 800 | 1 | 512 | 128 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NOR FLASH, ONFI2.2 | 1 | 1x 1 Gbps + IEEE 1588 | 4 | 4 | 5 | 4 | 2 | AA,ESAI, SPDIF | MIPI-CSI-2,PCP | LFBGA624 | 0.8 | -40 | 125 | ||||
| MCIMX6S4AVM08AD | Arm® Cortex®-A9 | 800 | 1 | 512 | 128 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NOR FLASH, ONFI2.2 | 1 | 1x 1 Gbps + IEEE 1588 | 4 | 4 | 5 | 4 | 2 | AA,ESAI, SPDIF | MIPI-CSI-2 | Vivante GC320 (600Mpx/s), Vivante GC880(53Mtri/s) | LFBGA624 | 0.8 | -40 | 125 | |||
| MCIMX6S5DVM10AD | Arm® Cortex®-A9 | 1000 | 1 | 512 | 128 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NOR FLASH, ONFI2.2 | 1 | 1x 1 Gbps + IEEE 1588 | 4 | 4 | 5 | 4 | 2 | AA,ESAI, SPDIF | MIPI-CSI-2 | HD1080p30Video Decode, HD1080p30 Video Encode, HD1080p30 Video Transcode | VivanteGC320 (600Mpx/s), Vivante GC880 (53Mtri/s) | LFBGA624 | 0.8 | 0 | 95 | ||
| MCIMX6S5EVM10AD | Arm® Cortex®-A9 | 1000 | 1 | 512 | 128 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NOR FLASH, ONFI2.2 | 1 | 1x 1 Gbps + IEEE 1588 | 4 | 4 | 5 | 4 | 2 | AA,ESAI, SPDIF | MIPI-CSI-2 | HD1080p30Video Decode, HD1080p30 Video Encode, HD1080p30 Video Transcode | VivanteGC320 (600Mpx/s), Vivante GC880 (53Mtri/s) | LFBGA624 | 0.8 | -20 | 105 | ||
| MCIMX6S6AVM08AD | Arm® Cortex®-A9 | 800 | 1 | 512 | 128 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NOR FLASH, ONFI2.2 | 1 | 1x 1 Gbps + IEEE 1588 | 4 | 4 | 5 | 4 | 2 | AA,ESAI, SPDIF | MIPI-CSI-2 | HD1080p30Video Decode, HD1080p30 Video Encode, HD1080p30 Video Transcode | VivanteGC320 (600Mpx/s), Vivante GC880 (53Mtri/s) | LFBGA624 | 0.8 | -40 | 125 | ||
| MCIMX6S6AVM10AD | Arm® Cortex®-A9 | 800 | 1 | 512 | 128 | DDR3LSDRAM, ECC, LPDDR2 DRAM, NOR FLASH, ONFI2.2 | 1 | 1x 1 Gbps + IEEE 1588 | 4 | 5 | 4 | AA,ESAI, SPDIF | HD1080p30Video Transcode | VivanteGC880 (53Mtri/s) | LFBGA624 | 0.8 | -40 | 125 | |||||
| MCIMX6S7CVM08AD | Arm® Cortex®-A9 | 800 | 1 | 512 | 128 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NOR FLASH, ONFI2.2 | 1 | 1x 1 Gbps + IEEE 1588 | 4 | 4 | 5 | 4 | 2 | AA,ESAI, SPDIF | MIPI-CSI-2 | HD1080p30Video Decode, HD1080p30 Video Encode, HD1080p30 Video Transcode | VivanteGC320 (600Mpx/s), Vivante GC880 (53Mtri/s) | LFBGA624 | 0.8 | -40 | 105 | ||
| MCIMX6S8DVM10AD | Arm® Cortex®-A9 | 1000 | 1 | 512 | 128 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NOR FLASH, ONFI2.2 | 1 | 1x 1 Gbps + IEEE 1588 | 4 | 4 | 5 | 4 | 2 | AA,ESAI, SPDIF | MIPI-CSI-2 | HD1080p30Video Decode, HD1080p30 Video Encode, HD1080p30 Video Transcode | VivanteGC320 (600Mpx/s), Vivante GC880 (53Mtri/s) | LFBGA624 | 0.8 | 0 | 95 | ||
| MCIMX6D4AVT08AE | Arm® Cortex®-A9 | 852 | 2 | 1024 | 256 | 1 | 1x 1 Gbps + IEEE 1588 | 5 | 3 | 5 | 4 | 2 | AA,ESAI, SPDIF | MIPI-CSI-2 | VivanteGC2000 (176Mtri/s), Vivante GC320 (600Mpx/s), Vivante GC355 (300Mpx/s) | FBGA624 | 0.8 | -40 | 105 | ||||
| MCIMX6D4AVT10AE | Arm® Cortex®-A9 | 1000 | 2 | 1024 | 256 | 1 | 1x 1 Gbps + IEEE 1588 | 5 | 3 | 5 | 4 | 2 | AA,ESAI, SPDIF | MIPI-CSI-2 | VivanteGC2000 (176Mtri/s), Vivante GC320 (600Mpx/s), Vivante GC355 (300Mpx/s) | FBGA624 | 0.8 | -40 | 125 | ||||
| MCIMX6D5EYM10AE | Arm® Cortex®-A9 | 1000 | 2 | 1024 | 256 | 1 | 1x 1 Gbps + IEEE 1588 | 5 | 3 | 5 | 4 | 2 | AA,ESAI, SPDIF | MIPI-CSI-2 | HD1080p30Video Encode, HD1080p30 Video Transcode, HD1080p60 Video Decode | VivanteGC2000 (176Mtri/s), Vivante GC320 (600Mpx/s), Vivante GC355 (300Mpx/s) | LFBGA624 | 0.8 | -20 | 105 | |||
| MCIMX6D5EYM12AE | Arm® Cortex®-A9 | 1200 | 2 | 1024 | 256 | 1 | 1x 1 Gbps + IEEE 1588 | 5 | 3 | 5 | 4 | 2 | AA,ESAI, SPDIF | MIPI-CSI-2 | HD1080p30Video Encode, HD1080p30 Video Transcode, HD1080p60 Video Decode | LFBGA624 | 0.8 | -20 | 105 | ||||
| MCIMX6D5EZK08AE | Arm® Cortex®-A9 | 800 | 2 | 1024 | 256 | ECC,LPDDR2 DRAM, NAND FLASH, NOR FLASH, ONFI2.2 | 1 | 1x 1 Gbps + IEEE 1588 | 5 | 3 | 5 | 4 | 2 | AA,ESAI, SPDIF | MIPI-CSI-2 | HD1080p30Video Encode, HD1080p30 Video Transcode, HD1080p60 Video Decode | VivanteGC2000 (176Mtri/s), Vivante GC320 (600Mpx/s), Vivante GC355 (300Mpx/s) | LFBGA569S | 0.4 | -20 | 105 | ||
| MCIMX6D6AVT08AE | Arm® Cortex®-A9 | 852 | 2 | 1024 | 256 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NAND FLASH, NOR FLASH, ONFI2.2 | 1 | 1x 1 Gbps + IEEE 1588 | 5 | 3 | 5 | 4 | 2 | AA,ESAI, SPDIF | MIPI-CSI-2 | HD1080p30Video Encode, HD1080p30 Video Transcode, HD1080p60 Video Decode | VivanteGC2000 (176Mtri/s), Vivante GC320 (600Mpx/s), Vivante GC355 (300Mpx/s) | FBGA624 | 0.8 | -40 | 105 | ||
| MCIMX6D6AVT10AE | Arm® Cortex®-A9 | 100 | 2 | 1024 | 256 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NAND FLASH, NOR FLASH, ONFI2.2 | 1 | 1x 1 Gbps + IEEE 1588 | 5 | 3 | 5 | 4 | 2 | AA,ESAI, SPDIF | MIPI-CSI-2 | HD1080p30Video Encode, HD1080p30 Video Transcode, HD1080p60 Video Decode | VivanteGC2000 (176Mtri/s), Vivante GC320 (600Mpx/s), Vivante GC355 (300Mpx/s) | FBGA624 | 0.8 | -40 | 105 | ||
| MCIMX6D7CVT08AE | Arm® Cortex®-A9 | 800 | 2 | 1024 | 256 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NAND FLASH, NOR FLASH, ONFI2.2 | 1 | 1x 1 Gbps + IEEE 1588 | 5 | 3 | 5 | 4 | 2 | AA,ESAI, SPDIF | MIPI-CSI-2 | HD1080p30Video Encode, HD1080p30 Video Transcode, HD1080p60 Video Decode | VivanteGC2000 (176Mtri/s), Vivante GC320 (600Mpx/s), Vivante GC355 (300Mpx/s) | FBGA624 | 0.8 | -40 | 105 | ||
| MCIMX6D7CZK08AE | Arm® Cortex®-A9 | 800 | 2 | 1024 | 256 | ECC,LPDDR2 DRAM, NAND FLASH, NOR FLASH, ONFI2.2 | 1 | 1x 1 Gbps + IEEE 1588 | 5 | 3 | 5 | 4 | 2 | AA,ESAI, SPDIF | MIPI-CSI-2 | HD1080p30Video Encode, HD1080p30 Video Transcode, HD1080p60 Video Decode | VivanteGC2000 (176Mtri/s), Vivante GC320 (600Mpx/s), Vivante GC355 (300Mpx/s) | LFBGA569S | 0.4 | -40 | 105 | ||
| MCIMX6D4AVT08AE | Arm® Cortex®-A9 | 852 | 2 | 1024 | 256 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NAND FLASH, NOR FLASH, ONFI2.2 | 1 | 1x 1 Gbps + IEEE 1588 | 5 | 3 | 5 | 4 | 2 | AA,ESAI, SPDIF | MIPI-CSI-2 | VivanteGC2000 (176Mtri/s), Vivante GC320 (600Mpx/s), Vivante GC355 (300Mpx/s) | FBGA624 | 0.8 | -40 | 105 | |||
| MCIMX6D4AVT10AE | Arm® Cortex®-A9 | 1000 | 2 | 1024 | 256 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NAND FLASH, NOR FLASH, ONFI2.2 | 1 | 1x 1 Gbps + IEEE 1588 | 5 | 3 | 5 | 4 | 2 | AA,ESAI, SPDIF | MIPI-CSI-2 | VivanteGC2000 (176Mtri/s), Vivante GC320 (600Mpx/s), Vivante GC355 (300Mpx/s) | FBGA624 | 0.8 | -40 | 125 | |||
| MCIMX6D5EYM10AE | Arm® Cortex®-A9 | 1000 | 2 | 1024 | 256 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NAND FLASH, NOR FLASH, ONFI2.2 | 1 | 1x 1 Gbps + IEEE 1588 | 5 | 3 | 5 | 4 | 2 | AA,ESAI, SPDIF | MIPI-CSI-2 | HD1080p30Video Encode, HD1080p30 Video Transcode, HD1080p60 Video Decode | VivanteGC2000 (176Mtri/s), Vivante GC320 (600Mpx/s), Vivante GC355 (300Mpx/s) | LFBGA624 | 0.8 | -20 | 105 | ||
| MCIMX6D5EYM12AE | Arm® Cortex®-A9 | 1200 | 2 | 1024 | 256 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NOR FLASH, ONFI2.2 | 1 | 1x 1 Gbps + IEEE 1588 | 5 | 3 | 5 | 4 | 2 | AA,ESAI, SPDIF | MIPI-CSI-2 | HD1080p30Video Encode, HD1080p30 Video Transcode, HD1080p60 Video Decode | LFBGA624 | 0.8 | -20 | 105 | |||
| MCIMX6D5EZK08AE | Arm® Cortex®-A9 | 800 | 2 | 1024 | 256 | ECC,LPDDR2 DRAM, NAND FLASH, NOR FLASH, ONFI2.2 | 1 | 1x 1 Gbps + IEEE 1588 | 5 | 3 | 5 | 4 | 2 | AA,ESAI, SPDIF | MIPI-CSI-2 | HD1080p30Video Encode, HD1080p30 Video Transcode, HD1080p60 Video Decode | VivanteGC2000 (176Mtri/s), Vivante GC320 (600Mpx/s), Vivante GC355 (300Mpx/s) | LFBGA569S | 0.4 | -20 | 105 | ||
| MCIMX6D6AVT08AE | Arm® Cortex®-A9 | 852 | 2 | 1024 | 256 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NAND FLASH, NOR FLASH, ONFI2.2 | 1 | 1x 1 Gbps + IEEE 1588 | 5 | 3 | 5 | 4 | 2 | AA,ESAI, SPDIF | MIPI-CSI-2 | HD1080p30Video Encode, HD1080p30 Video Transcode, HD1080p60 Video Decode | VivanteGC2000 (176Mtri/s), Vivante GC320 (600Mpx/s), Vivante GC355 (300Mpx/s) | FBGA624 | 0.8 | -40 | 105 | ||
| MCIMX6D6AVT10AE | Arm® Cortex®-A9 | 100 | 2 | 1024 | 256 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NAND FLASH, NOR FLASH, ONFI2.2 | 1 | 1x 1 Gbps + IEEE 1588 | 5 | 3 | 5 | 4 | 2 | AA,ESAI, SPDIF | MIPI-CSI-2 | HD1080p30Video Encode, HD1080p30 Video Transcode, HD1080p60 Video Decode | VivanteGC2000 (176Mtri/s), Vivante GC320 (600Mpx/s), Vivante GC355 (300Mpx/s) | FBGA624 | 0.8 | -40 | 105 | ||
| MCIMX6D7CVT08AE | Arm® Cortex®-A9 | 800 | 2 | 1024 | 256 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NAND FLASH, NOR FLASH, ONFI2.2 | 1 | 1x 1 Gbps + IEEE 1588 | 5 | 3 | 5 | 4 | 2 | AA,ESAI, SPDIF | MIPI-CSI-2 | HD1080p30Video Encode, HD1080p30 Video Transcode, HD1080p60 Video Decode | VivanteGC2000 (176Mtri/s), Vivante GC320 (600Mpx/s), Vivante GC355 (300Mpx/s) | FBGA624 | 0.8 | -40 | 105 | ||
| MCIMX6D7CZK08AE | Arm® Cortex®-A9 | 800 | 2 | 1024 | 256 | ECC,LPDDR2 DRAM, NAND FLASH, NOR FLASH, ONFI2.2 | 1 | 1x 1 Gbps + IEEE 1588 | 5 | 3 | 5 | 4 | 2 | AA,ESAI, SPDIF | MIPI-CSI-2 | HD1080p30Video Encode, HD1080p30 Video Transcode, HD1080p60 Video Decode | VivanteGC2000 (176Mtri/s), Vivante GC320 (600Mpx/s), Vivante GC355 (300Mpx/s) | LFBGA569S | 0.4 | -40 | 105 | ||
| MCIMX6DP4AVT1AB | Arm® Cortex®-A9 | 1000 | 2 | 1024 | 512 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NAND FLASH, NOR FLASH, ONFI2.2 | 1 | 1x 1 Gbps + IEEE 1588 | 5 | 3 | 5 | 4 | 2 | AA,ESAI, SPDIF | MIPI-CSI-2 | VivanteGC2000+ (198Mtri/s), Vivante GC320 (600Mpx/s), Vivante GC355 (300Mpx/s) | FBGA624 | 0.8 | -40 | 125 | |||
| MCIMX6DP4AVT8AB | Arm® Cortex®-A9 | 852 | 2 | 1024 | 512 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NAND FLASH, NOR FLASH, ONFI2.2 | 1 | 1x 1 Gbps + IEEE 1588 | 5 | 3 | 5 | 4 | 2 | AA,ESAI, SPDIF | MIPI-CSI-2 | VivanteGC2000+ (198Mtri/s), Vivante GC320 (600Mpx/s), Vivante GC355 (300Mpx/s) | FBGA624 | 0.8 | -40 | 125 | |||
| MCIMX6DP5EYM1AB | Arm® Cortex®-A9 | 1000 | 2 | 1024 | 512 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NAND FLASH, NOR FLASH, ONFI2.2 | 1 | 1x 1 Gbps + IEEE 1588 | 5 | 3 | 5 | 4 | 2 | AA,ESAI, SPDIF | MIPI-CSI-2 | HD1080p30Video Encode, HD1080p30 Video Transcode, HD1080p60 Video Decode | VivanteGC2000+ (198Mtri/s), Vivante GC320 (600Mpx/s), Vivante GC355 (300Mpx/s) | LFBGA624 | 0.8 | -20 | 105 | ||
| MCIMX6DP6AVT1AB | Arm® Cortex®-A9 | 1000 | 2 | 1024 | 512 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NAND FLASH, NOR FLASH, ONFI2.2 | 1 | 1x 1 Gbps + IEEE 1588 | 5 | 3 | 5 | 4 | 2 | AA,ESAI, SPDIF | MIPI-CSI-2 | HD1080p30Video Encode, HD1080p30 Video Transcode, HD1080p60 Video Decode | VivanteGC2000+ (198Mtri/s), Vivante GC320 (600Mpx/s), Vivante GC355 (300Mpx/s) | FBGA624 | 0.8 | -40 | 125 | ||
| MCIMX6DP6AVT8AB | Arm® Cortex®-A9 | 852 | 2 | 1024 | 512 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NAND FLASH, NOR FLASH, ONFI2.2 | 1 | 1x 1 Gbps + IEEE 1588 | 5 | 3 | 5 | 4 | 2 | AA,ESAI, SPDIF | MIPI-CSI-2 | HD1080p30Video Encode, HD1080p30 Video Transcode, HD1080p60 Video Decode | VivanteGC2000+ (198Mtri/s), Vivante GC320 (600Mpx/s), Vivante GC355 (300Mpx/s) | FBGA624 | 0.8 | -40 | 125 | ||
| MCIMX6DP7CVT8AB | Arm® Cortex®-A9 | 800 | 2 | 1024 | 512 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NAND FLASH, NOR FLASH, ONFI2.2 | 1 | 1x 1 Gbps + IEEE 1588 | 5 | 3 | 5 | 4 | 2 | AA,ESAI, SPDIF | MIPI-CSI-2 | HD1080p30Video Encode, HD1080p30 Video Transcode, HD1080p60 Video Decode | VivanteGC2000+ (198Mtri/s), Vivante GC320 (600Mpx/s), Vivante GC355 (300Mpx/s) | FBGA624 | 0.8 | -40 | 105 | ||
| MCIMX6Q4AVT08AE | Arm® Cortex®-A9 | 852 | 4 | 1024 | 256 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NAND FLASH, NOR FLASH, ONFI2.2 | 1 | 1x 1 Gbps + IEEE 1588 | 5 | 3 | 5 | 4 | 2 | AA,ESAI, SPDIF | MIPI-CSI-2 | VivanteGC2000 (176Mtri/s), Vivante GC320 (600Mpx/s), Vivante GC355 (300Mpx/s) | FBGA624 | 0.8 | -40 | 125 | |||
| MCIMX6Q4AVT10AE | Arm® Cortex®-A9 | 1000 | 4 | 1024 | 256 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NAND FLASH, NOR FLASH, ONFI2.2 | 1 | 1x 1 Gbps + IEEE 1588 | 5 | 3 | 5 | 4 | 2 | AA,ESAI, SPDIF | MIPI-CSI-2 | VivanteGC2000 (176Mtri/s), Vivante GC320 (600Mpx/s), Vivante GC355 (300Mpx/s) | FBGA624 | 0.8 | -40 | 125 | |||
| MCIMX6Q5EYM10AE | Arm® Cortex®-A9 | 1000 | 4 | 1024 | 256 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NAND FLASH, NOR FLASH, ONFI2.2 | 1 | 1x 1 Gbps + IEEE 1588 | 5 | 3 | 5 | 4 | 2 | AA,ESAI, SPDIF | MIPI-CSI-2 | HD1080p30Video Encode, HD1080p30 Video Transcode, HD1080p60 Video Decode | VivanteGC2000 (176Mtri/s), Vivante GC320 (600Mpx/s), Vivante GC355 (300Mpx/s) | LFBGA624 | 0.8 | -20 | 105 | ||
| MCIMX6Q5EYM12AE | Arm® Cortex®-A9 | 1200 | 4 | 1024 | 256 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NAND FLASH, NOR FLASH, ONFI2.2 | 1 | 1x 1 Gbps + IEEE 1588 | 5 | 3 | 5 | 4 | 2 | AA,ESAI, SPDIF | MIPI-CSI-2 | HD1080p30Video Encode, HD1080p30 Video Transcode, HD1080p60 Video Decode | VivanteGC2000 (176Mtri/s), Vivante GC320 (600Mpx/s), Vivante GC355 (300Mpx/s) | LFBGA624 | 0.8 | -20 | 105 | ||
| MCIMX6Q5EZK08AE | Arm® Cortex®-A9 | 800 | 4 | 1024 | 256 | ECC,LPDDR2 DRAM, NAND FLASH, NOR FLASH, ONFI2.2 | 1 | 1x 1 Gbps + IEEE 1588 | 5 | 3 | 5 | 4 | 2 | AA,ESAI, SPDIF | MIPI-CSI-2 | HD1080p30Video Encode, HD1080p30 Video Transcode, HD1080p60 Video Decode | VivanteGC2000 (176Mtri/s), Vivante GC320 (600Mpx/s), Vivante GC355 (300Mpx/s) | LFBGA569S | 0.4 | -20 | 105 | ||
| MCIMX6Q6AVT08AE | Arm® Cortex®-A9 | 852 | 4 | 1024 | 256 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NAND FLASH, NOR FLASH, ONFI2.2 | 1 | 1x 1 Gbps + IEEE 1588 | 5 | 3 | 5 | 4 | 2 | AA,ESAI, SPDIF | MIPI-CSI-2 | HD1080p30Video Encode, HD1080p30 Video Transcode, HD1080p60 Video Decode | VivanteGC2000 (176Mtri/s), Vivante GC320 (600Mpx/s), Vivante GC355 (300Mpx/s) | FBGA624 | 0.8 | -40 | 125 | ||
| MCIMX6Q6AVT10AE | Arm® Cortex®-A9 | 1000 | 4 | 1024 | 256 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NAND FLASH, NOR FLASH, ONFI2.2 | 1 | 1x 1 Gbps + IEEE 1588 | 5 | 3 | 5 | 4 | 2 | AA,ESAI, SPDIF | MIPI-CSI-2 | HD1080p30Video Encode, HD1080p30 Video Transcode, HD1080p60 Video Decode | VivanteGC2000 (176Mtri/s), Vivante GC320 (600Mpx/s), Vivante GC355 (300Mpx/s) | FBGA624 | 0.8 | -40 | 125 | ||
| MCIMX6Q7CVT08AE | Arm® Cortex®-A9 | 800 | 4 | 1024 | 256 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NAND FLASH, NOR FLASH, ONFI2.2 | 1 | 1x 1 Gbps + IEEE 1588 | 5 | 3 | 5 | 4 | 2 | AA,ESAI, SPDIF | MIPI-CSI-2 | HD1080p30Video Encode, HD1080p30 Video Transcode, HD1080p60 Video Decode | VivanteGC2000 (176Mtri/s), Vivante GC320 (600Mpx/s), Vivante GC355 (300Mpx/s) | FBGA624 | 0.8 | -40 | 105 | ||
| MCIMX6Q7CZK08AE | Arm® Cortex®-A9 | 800 | 4 | 1024 | 256 | ECC,LPDDR2 DRAM, NAND FLASH, NOR FLASH, ONFI2.2 | 1 | 1x 1 Gbps + IEEE 1588 | 5 | 3 | 5 | 4 | 2 | AA,ESAI, SPDIF | MIPI-CSI-2 | HD1080p30Video Encode, HD1080p30 Video Transcode, HD1080p60 Video Decode | VivanteGC2000 (176Mtri/s), Vivante GC320 (600Mpx/s), Vivante GC355 (300Mpx/s) | LFBGA569S | 0.4 | -40 | 105 | ||
| MCIMX6QP4AVT1AA | Arm® Cortex®-A9 | 1000 | 4 | 1024 | 512 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NAND FLASH, NOR FLASH, ONFI2.2 | 1 | 1x 1 Gbps + IEEE 1588 | 5 | 3 | 5 | 4 | 2 | AA,ESAI, SPDIF | HDMI1.4, LVDS, MIPI-CSI-2, MIPI-DSI, PCP, RGB | VivanteGC2000+ (198Mtri/s), Vivante GC320 (600Mpx/s), Vivante GC355 (300Mpx/s) | FBGA624 | 0.8 | -40 | 125 | |||
| MCIMX6QP4AVT8AA | Arm® Cortex®-A9 | 852 | 4 | 1024 | 512 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NAND FLASH, NOR FLASH, ONFI2.2 | 1 | 1x 1 Gbps + IEEE 1588 | 5 | 3 | 5 | 4 | 2 | AA,ESAI, SPDIF | HDMI1.4, LVDS, MIPI-CSI-2, MIPI-DSI, PCP, RGB | VivanteGC2000+ (198Mtri/s), Vivante GC320 (600Mpx/s), Vivante GC355 (300Mpx/s) | FBGA624 | 0.8 | -40 | 125 | |||
| MCIMX6QP5EYM1AB | Arm® Cortex®-A9 | 1000 | 4 | 1024 | 512 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NAND FLASH, NOR FLASH, ONFI2.2 | 1 | 1x 1 Gbps + IEEE 1588 | 5 | 3 | 5 | 4 | 2 | AA,ESAI, SPDIF | MIPI-CSI-2 | HD1080p30Video Encode, HD1080p30 Video Transcode, HD1080p60 Video Decode | VivanteGC2000+ (198Mtri/s), Vivante GC320 (600Mpx/s), Vivante GC355 (300Mpx/s) | LFBGA624 | 0.8 | -20 | 105 | ||
| MCIMX6QP6AVT1AB | Arm® Cortex®-A9 | 1000 | 4 | 1024 | 512 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NAND FLASH, NOR FLASH, ONFI2.2 | 1 | 1x 1 Gbps + IEEE 1588 | 5 | 3 | 5 | 4 | 2 | AA,ESAI, SPDIF | MIPI-CSI-2 | HD1080p30Video Encode, HD1080p30 Video Transcode, HD1080p60 Video Decode | VivanteGC2000+ (198Mtri/s), Vivante GC320 (600Mpx/s), Vivante GC355 (300Mpx/s) | FBGA624 | 0.8 | -40 | 125 | ||
| MCIMX6QP6AVT8AA | Arm® Cortex®-A9 | 852 | 4 | 1024 | 512 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NAND FLASH, NOR FLASH, ONFI2.2 | 1 | 1x 1 Gbps + IEEE 1588 | 5 | 3 | 5 | 4 | 2 | AA,ESAI, SPDIF | HDMI1.4, LVDS, MIPI-CSI-2, MIPI-DSI, PCP, RGB | HD1080p30Video Encode, HD1080p30 Video Transcode, HD1080p60 Video Decode | VivanteGC2000+ (198Mtri/s), Vivante GC320 (600Mpx/s), Vivante GC355 (300Mpx/s) | FBGA624 | 0.8 | -40 | 125 | ||
| MCIMX6QP7CVT8AB | Arm® Cortex®-A9 | 800 | 4 | 1024 | 512 | DDR3SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, NAND FLASH, NOR FLASH, ONFI2.2 | 1 | 1x 1 Gbps + IEEE 1588 | 5 | 3 | 5 | 4 | 2 | AA,ESAI, SPDIF | MIPI-CSI-2 | HD1080p30Video Encode, HD1080p30 Video Transcode, HD1080p60 Video Decode | VivanteGC2000+ (198Mtri/s), Vivante GC320 (600Mpx/s), Vivante GC355 (300Mpx/s) | FBGA624 | 0.8 | -40 | 105 |
i.MX 6系列的应用处理器将可扩展平台与广泛的集成和高能效处理功能相结合，尤其适合多媒体应用。目标应用为消费、工业和汽车领域，具有广泛的集成度和节能处理能力，可胜任领先的3D和2D图形及高分辨率视频处理。i.MX 6系列应用处理器提供了功能和性能可扩展的多核平台，其中包括基于Cortex®架构的单核，双核和四核系列，包括基于Cortex®-A9，Cortex®-A9 + Cortex®-M4和Cortex®-A7的解决方案。

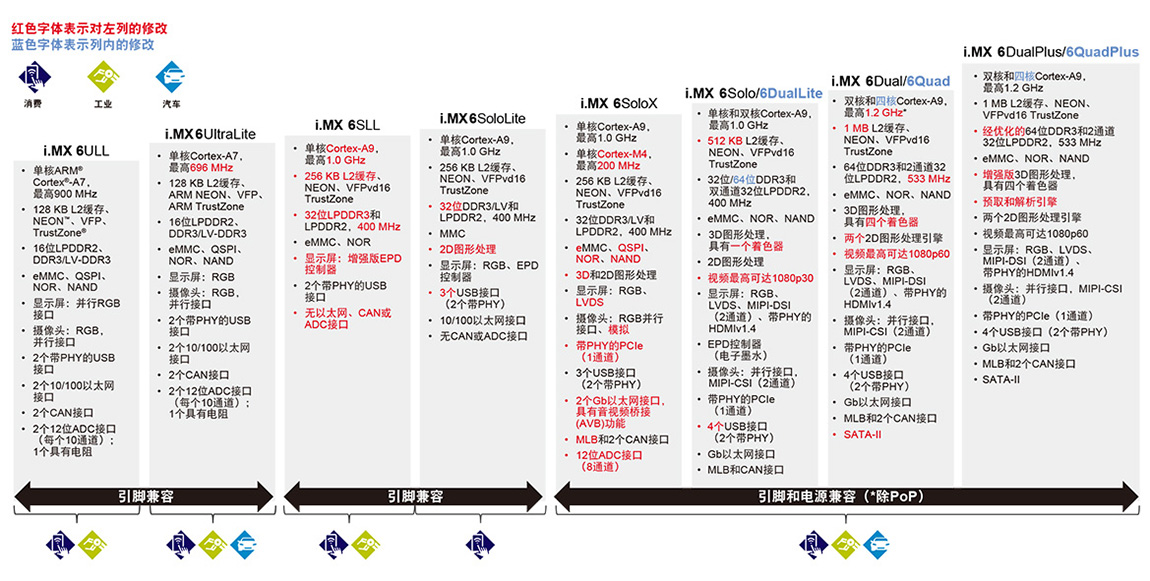

i.MX 6系列包含11个子系列，从A7到A9四核，可以满足不同应用需求，同时引脚兼容设计方便客户评估及产品系列兼容。
选型表下载
数据手册
- 【数据手册】i.MX 6DualLite车规级数据手册
- 【数据手册】i.MX 6DualLite工业级数据手册
- 【数据手册】i.MX 6DualLite商业级数据手册
- 【数据手册】i.MX 6DualPlus车规级数据手册
- 【数据手册】i.MX 6DualPlus工业级数据手册
- 【数据手册】i.MX 6DualPlus商业级数据手册
- 【数据手册】i.MX 6Dual车规级数据手册
- 【数据手册】i.MX 6Dual工业级数据手册
- 【数据手册】i.MX 6Dual商业级数据手册
- 【数据手册】i.MX 6QuadPlus车规级数据手册
- 【数据手册】i.MX 6QuadPlus工业级数据手册
- 【数据手册】i.MX 6QuadPlus商业级数据手册
- 【数据手册】i.MX 6Quad车规级数据手册
- 【数据手册】i.MX 6Quad工业级数据手册
- 【数据手册】i.MX 6Quad商业级数据手册
- 【数据手册】i.MX 6SLL工业级数据手册
- 【数据手册】i.MX 6SLL商业级数据手册
- 【数据手册】i.MX 6SoloLite数据手册
- 【数据手册】i.MX 6SoloX 工业级数据手册
- 【数据手册】i.MX 6SoloX车规级数据手册
- 【数据手册】i.MX 6SoloX商业级数据手册
- 【数据手册】i.MX 6Solo车规级数据手册
- 【数据手册】i.MX 6Solo工业级数据手册
- 【数据手册】i.MX 6Solo商业级数据手册
- 【数据手册】i.MX 6ULL商业级数据手册
- 【数据手册】i.MX 6UltraLite车规级数据手册
- 【数据手册】i.MX 6UltraLite工业级数据手册
- 【数据手册】i.MX 6UltraLite商业级数据手册
- 【数据手册】i.MX 6ULZ商业级数据手册
用户手册
