• GD32F3系列

    基于120MHz Cortex®-M4内核的微控制器

GD32F3系列基于120MHz Cortex®-M4内核的GD32F303/305/307多个系列主流型微控制器新品,以增强的处理效能和丰富的系统资源为市场主流应用注入澎湃动力。作为GD32微控制器家族的最新成员,GD32F3系列率先提供了3大系列37个产品型号,包括LQFP144、LQFP100、LQFP64和LQFP48等4种封装类型选择。

  • 主频高达108MHz的GD32F330/350多个系列超值型微控制器新品
  • 作为GD32微控制器家族的最新成员,GD32F330/350系列提供了多达29个产品型号,包括LQFP64、LQFP48、QFN32、QFN28以及TSSOP20等5种封装类型选择
  • 超值处理性能、超值接口资源、超值特定功能以外,更具备了超值成本价格,从而直接为成本敏感的入门级应用开辟道路
  • 最高主频可达120MHz并支持DSP指令运算,内核访问闪存高速免等待。芯片采用2.6V-3.6V供电,I/O口可承受5V电平。
  • 配备了2个支持三相PWM互补输出和霍尔采集接口的16位高级定时器可用于矢量控制,还拥有多达10个16位通用定时器、2个16位基本定时器和2个多通道DMA控制器。
  • 为广泛的主流应用配备了多种基本外设资源。包括多达3个USART、2个UART、3个SPI、2个I2C、2个I2S、2个CAN2.0B和1个SDIO,以及外部总线扩展控制器(EXMC)。
选型表下载
     GPTM
Part No.主频(MHz)FlashSRAMI/O(16bit)(32bit)Advanced
(16bit)
Basic TM
(16bit)
SysTick
(24bit)
WDGRTCUSART
+UART
I2CSPICAN 2.0BUSB 2.0 FSI2SSDIOEXMCCECComp12bit
ADCUnits (CHs)
12bit
DACUnits
Package
GD32F303CCT6120256K48Kup to 374121213231123(10)2LQFP48
GD32F303CET6120512K64Kup to 374121213231123(10)2LQFP48
GD32F303CGT61201024K96Kup to 3710121213231123(10)2LQFP48
GD32F303RCT6120256K48Kup to 5142212152311213(16)2LQFP64
GD32F303RET6120512K64Kup to 5142212152311213(16)2LQFP64
GD32F303RGT61201024K96Kup to 51102212152311213(16)2LQFP64
GD32F303RIT61202048K96Kup to 51102212152311213(16)2LQFP64
GD32F303RKT61203072K96Kup to 51102212152311213(16)2LQFP64
GD32F303VCT6120256K48Kup to 8042212152311213(16)2LQFP100
GD32F303VET6120512K64Kup to 8042212152311213(16)2LQFP100
GD32F303VGT61201024K96Kup to 80102212152311213(16)2LQFP100
GD32F303VIT61202048K96Kup to 80102212152311213(16)2LQFP100
GD32F303VKT61203072K96Kup to 80102212152311213(16)2LQFP100
GD32F303ZCT6120256K48Kup to 11242212152311213(21)2LQFP144
GD32F303ZET6120512K64Kup to 11242212152311213(21)2LQFP144
GD32F303ZGT61201024K96Kup to 112102212152311213(21)2LQFP144
GD32F303ZIT61202048K96Kup to 112102212152311213(21)2LQFP144
GD32F303ZKT61203072K96Kup to 112102212152311213(21)2LQFP144
GD32F305RBT6120128K64Kup to 514121215232OTG22(16)2LQFP64
GD32F305RCT6120256K96Kup to 514121215232OTG22(16)2LQFP64
GD32F305RET6120512K96Kup to 514221215232OTG22(16)2LQFP64
GD32F305RGT61201024K96Kup to 5110221215232OTG22(16)2LQFP64
GD32F305VCT6120256K96Kup to 804121215232OTG22(16)2LQFP100
GD32F305VET6120512K96Kup to 804221215232OTG22(16)2LQFP100
GD32F305VGT61201024K96Kup to 8010221215232OTG22(16)2LQFP100
GD32F305ZCT6120256K96Kup to 1124221215232OTG22(21)2LQFP144
GD32F305ZET6120512K96Kup to 1124221215232OTG22(21)2LQFP144
GD32F305ZGT61201024K96Kup to 11210221215232OTG22(21)2LQFP144
GD32F307RCT6120256K96Kup to 514121215232OTG22(16)2LQFP64
GD32F307RET6120512K96Kup to 514221215232OTG22(16)2LQFP64
GD32F307RGT61201024K96Kup to 5110221215232OTG22(16)2LQFP64
GD32F307VCT6120256K96Kup to 804121215232OTG22(16)2LQFP100
GD32F307VET6120512K96Kup to 804221215232OTG22(16)2LQFP100
GD32F307VGT61201024K96Kup to 8010221215232OTG22(16)2LQFP100
GD32F307ZCT6120256K96Kup to 1124221215232OTG22(21)2LQFP144
GD32F307ZET6120512K96Kup to 1124221215232OTG22(21)2LQFP144
GD32F307ZGT61201024K96Kup to 11210221215232OTG22(21)2LQFP144
GD32F330F4P68416K4Kup to 154111211111(9)TSSOP20
GD32F330F6P68432K4Kup to 154111212111(9)TSSOP20
GD32F330F8P68464K8Kup to 154111212221(9)TSSOP20
GD32F330G4U68416K4Kup to 234111211111(10)QFN28
GD32F330G6U68432K4Kup to 234111212111(10)QFN28
GD32F330G8U68464K8Kup to 235111212221(10)QFN28
GD32F330K4U68416K4Kup to 274111211111(10)QFN32
GD32F330K6U68432K4Kup to 274111212111(10)QFN32
GD32F330K8U68464K8Kup to 275111212221(10)QFN32
GD32F330C4T68416K4Kup to 394111211111(10)LQFP48
GD32F330C6T68432K4Kup to 394111212111(10)LQFP48
GD32F330C8T68464K8Kup to 395111212221(10)LQFP48
GD32F330CBT684128K16Kup to 395111212221(10)LQFP48
GD32F330R8T68464K16Kup to 555111212221(16)LQFP64
GD32F330RBT684128K16Kup to 555111212221(16)LQFP64
GD32F350G4U610816K4Kup to 245111121111OTG1121(10)1QFN28
GD32F350G6U610832K6Kup to 245111121211OTG1121(10)1QFN28
GD32F350G8U610864K8Kup to 245111121222OTG1121(10)1QFN28
GD32F350K4U610816K4Kup to 275111121111OTG1121(10)1QFN32
GD32F350K6U610832K6Kup to 275111121211OTG1121(10)1QFN32
GD32F350K8U610864K8Kup to 275111121222OTG1121(10)1QFN32
GD32F350C4T610816K4Kup to 395111121111OTG1121(10)1LQFP48
GD32F350C6T610832K6Kup to 395111121211OTG1121(10)1LQFP48
GD32F350C8T610864K8Kup to 395111121222OTG1121(10)1LQFP48
GD32F350CBT6108128K16Kup to 395111121222OTG1121(10)1LQFP48
GD32F350R4T610816K4Kup to 555111121111OTG1121(16)1LQFP64
GD32F350R6T610832K8Kup to 555111121211OTG1121(16)1LQFP64
GD32F350R8T610864K16Kup to 555111121222OTG1121(16)1LQFP64
GD32F350RBT6108128K16Kup to 555111121222OTG1121(16)1LQFP64

开发板型号

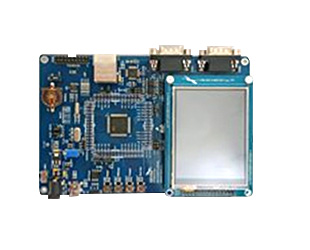

  • GD32330C-START

支持芯片

  • GD32F330CB

开发板型号

  • GD32330F-START

支持芯片

  • GD32F330F8

开发板型号

  • GD32330G-START

支持芯片

  • GD32F330G8

开发板型号

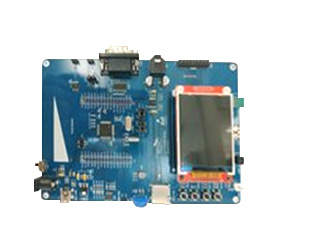

  • GD32350C-START

支持芯片

  • GD32F350CB

开发板型号

  • GD32350G-START

支持芯片

  • GD32F350G8

开发板型号

  • GD32350R-EVAL

支持芯片

  • GD32F350RBT6
