• LPC54000系列

    基于Arm®Cortex®-M4内核的高效微控制器(MCU)

LPC54000系列单核和双核 MCU 具备行业领先的下一代功效。凭借增强的可扩展性和功能集成,在当今竞争激烈的环境下,这些突破性器件的市场占有率取得了持续性增长。LPC54000 系列基于高性能的 Arm®Cortex®-M4 内核,带有可选的 Cortex®-M0+ 协处理器。单 Cortex®-M4 选项适用于着重无软件分区的单核处理的架构。

  • 具有极高的灵活性和性能可扩展性,可提供高达220MHz的性能,同时保持低至100uA/MHz 的节能效率
  • 除UART/SPI/I2C标准接口外,拥有丰富的外设接口,如USB/I2S/CAN/Eternet
  • 其中LPC546x8内置LCD driver,可支持分辨率1024x768
  • LPC541xx系列单核和双核MCU,具有广泛的性能和功能可扩展性,可为各种始终在线的应用提高功效
  • 除UART/SPI/I2C标准接口外,还支持USB/I2S
  • LPC540xx MCU系列提供无闪存设计和安全集成,具备高达180 MHz的性能和低至100uA/MHz的卓越功效
  • 除UART/SPI/I2C标准接口外,拥有丰富的外设接口,如USB/I2S/CAN/Eternet
  • 其中LPC54018内置LCD driver,可支持分辨率1024x768
选型表下载
产品型号电压 (V)内核主频
(max)(MHz)
Floating
PointUnit
DSPMPUCortex®-M0/
+Coprocessor
Flash (KB)EEPROM/
FlexRAM(KB)
SRAM (KB)UARTSPII2CI2SCANUSB
modules
Ethernet
w/1588
Graphic LCDGPIOSADC (8bit/10bit/
16bit/12bit/24bit)
封装尺寸(mm)
LPC54005JBD100E1.71-3.6Cortex®-M4180YESYESYES-0-360101110202--641x12bitLQFP10014x14x1.4
LPC54005JET100E1.71-3.6Cortex®-M4180YESYESYES-0-360101110202--641x12bitTFBGA1009x9x0.7
LPC54016JBD100E1.71-3.6Cortex®-M4180YESYESYES-0-360101110222MII / RMII-641x12bitLQFP10014x14x1.4
LPC54016JBD208E1.71-3.6Cortex®-M4180YESYESYES-0-360101110222MII / RMII-1711x12bitLQFP20828x28x1.4
LPC54016JET100E1.71-3.6Cortex®-M4180YESYESYES-0-360101110222MII / RMII-641x12bitTFBGA1009x9x0.7
LPC54016JET180E1.71-3.6Cortex®-M4180YESYESYES-0-360101110222MII / RMII-1451x12bitTFBGA18012x12x0.8
LPC54018JBD208E1.71-3.6Cortex®-M4180YESYESYES-0-360101110222MII / RMII1024x7681711x12bitLQFP20828x28x1.4
LPC54018JET180E1.71-3.6Cortex®-M4180YESYESYES-0-360101110222MII / RMII1024x7681451x12bitTFBGA18012x12x0.8
LPC54S005JBD100E1.71-3.6Cortex®-M4180YESYESYES-0-360101110202--641x12bitLQFP10014x14x1.4
LPC54S005JET100E1.71-3.6Cortex®-M4180YESYESYES-0-360101110202--641x12bitTFBGA1009x9x0.7
LPC54S016JBD100E1.71-3.6Cortex®-M4180YESYESYES-0-360101110222MII / RMII-641x12bitLQFP10014x14x1.4
LPC54S016JBD208E1.71-3.6Cortex®-M4180YESYESYES-0-360101110222MII / RMII-1711x12bitLQFP20828x28x1.4
LPC54S016JET100E1.71-3.6Cortex®-M4180YESYESYES-0-360101110222MII / RMII-641x12bitTFBGA1009x9x0.7
LPC54S016JET180E1.71-3.6Cortex®-M4180YESYESYES-0-360101110222MII / RMII-1451x12bitTFBGA18012x12x0.8
LPC54S018JBD208E1.71-3.6Cortex®-M4180YESYESYES-0-360101110222MII / RMII1024x7681711x12bitLQFP20828x28x1.4
LPC54S018JET180E1.71-3.6Cortex®-M4180YESYESYES-0-360101110222MII / RMII1024x7681451x12bitTFBGA18012x12x0.8
LPC54101J256BD641.62-3.6Cortex®-M4100YESYESYES-256-104423-----500/0/0/1/0LQFP10x10x1.4
LPC54101J256UK491.62-3.6Cortex®-M4100YESYESYES-256-104423-----370/0/0/1/0WLCSP3.29x3.29x0.54
LPC54101J512BD641.62-3.6Cortex®-M4100YESYESYES-512-104423-----500/0/0/1/0LQFP10x10x1.4
LPC54101J512UK491.62-3.6Cortex®-M4100YESYESYES-512-104423-----370/0/0/1/0WLCSP3.29x3.29x0.54
LPC54102J256BD641.62-3.6Cortex®-M4 &Cortex®-M0+100YESYESYESYES256-104423-----500/0/0/1/0LQFP10x10x1.4
LPC54102J256UK491.62-3.6Cortex®-M4 &Cortex®-M0+100YESYESYESYES256-104423-----370/0/0/1/0WLCSP3.29x3.29x0.54
LPC54102J512BD641.71-3.6Cortex®-M4 &Cortex®-M0+100YESYESYESYES512-105423-----500/0/0/1/0LQFP10x10x1.4
LPC54102J512UK491.62-3.6Cortex®-M4 &Cortex®-M0+100YESYESYESYES512-106423-----370/0/0/1/0WLCSP3.29x3.29x0.54
LPC54113J128BD641.62-3.6Cortex®-M4100YESYESYES-128-968882-1--500/0/0/1/0LQFP10x10x1.4
LPC54113J256BD641.62-3.6Cortex®-M4100YESYESYES-256-1928882-1--500/0/0/1/0LQFP10x10x1.4
LPC54113J256UK491.62-3.6Cortex®-M4100YESYESYES-256-1928882-1--370/0/0/1/0WLCSP3.4x3.4x0.54
LPC54114J256BD641.62-3.6Cortex®-M4 &Cortex®-M0+100YESYESYESYES256-1928882-1--500/0/0/1/0LQFP10x10x1.4
LPC54114J256UK491.62-3.6Cortex®-M4 &Cortex®-M0+100YESYESYESYES256-1928882-1--370/0/0/1/0WLCSP3.4x3.4x0.54
LPC54605J256ET180E1.71-3.6Cortex®-M4180YESYESYES-25616136101010202 -1451x12bitTFBGA18012x12x0.8
LPC54605J512ET180E1.71-3.6Cortex®-M4180YESYESYES-51216200101010202 -1451x12bitTFBGA18012x12x0.8
LPC54606J256BD100E1.71-3.6Cortex®-M4180YESYESYES-25616136999222RMII-641x12bitLQFP10014x14x1.4
LPC54606J256ET100E1.71-3.6Cortex®-M4180YESYESYES-25616136999222RMII-641x12bitTFBGA1009x9x0.7
LPC54606J256ET180E1.71-3.6Cortex®-M4180YESYESYES-25616136101010222MII / RMII-1451x12bitTFBGA18012x12x0.8
LPC54606J512BD100E1.71-3.6Cortex®-M4180YESYESYES-51216200999222RMII-641x12bitLQFP10014x14x1.4
LPC54606J512BD208E1.71-3.6Cortex®-M4180YESYESYES-51216200101010222MII / RMII-1711x12bitLQFP20828x28x1.4
LPC54606J512ET100E1.71-3.6Cortex®-M4180YESYESYES-51216200999222RMII-641x12bitTFBGA1009x9x0.7
LPC54607J256BD208E1.71-3.6Cortex®-M4180YESYESYES-25616136101010202 1024x7681711x12bitLQFP20828x28x1.4
LPC54607J256ET180E1.71-3.6Cortex®-M4180YESYESYES-25616136101010202 1024x7681451x12bitTFBGA18012x12x0.8
LPC54607J512ET180E1.71-3.6Cortex®-M4180YESYESYES-51216200101010202 1024x7681451x12bitTFBGA18012x12x0.8
LPC54608J512BD208E1.71-3.6Cortex®-M4180YESYESYES-51216200101010222MII / RMII1024x7681711x12bitLQFP20828x28x1.4
LPC54608J512ET180E1.71-3.6Cortex®-M4180YESYESYES-51216200101010222MII / RMII1024x7681451x12bitTFBGA18012x12x0.8
LPC54616J256ET180E1.71-3.6Cortex®-M4180YESYESYES-25616136101010222MII / RMII-1451x12bitTFBGA18012x12x0.8
LPC54616J512BD100E1.71-3.6Cortex®-M4180YESYESYES-51216200999222RMII-641x12bitLQFP10014x14x1.4
LPC54616J512BD208E1.71-3.6Cortex®-M4180YESYESYES-51216200101010222MII / RMII-1711x12bitLQFP20828x28x1.4
LPC54616J512ET100E1.71-3.6Cortex®-M4180YESYESYES-51216200999222RMII-641x12bitTFBGA1009x9x0.7
LPC54618J512BD208E1.71-3.6Cortex®-M4180YESYESYES-51216200101010222MII / RMII1024x7681711x12bitLQFP20828x28x1.4
LPC54618J512ET180E1.71-3.6Cortex®-M4180YESYESYES-51216200101010222MII / RMII1024x7681451x12bitTFBGA18012x12x0.8
LPC54628J512ET180E1.71-3.6Cortex®-M4220YESYESYES-51216200101010222MII / RMII1024x7681451x12bitTFBGA18012x12x0.8
LPC54605J256ET100E1.71-3.6Cortex®-M4180YESYESYES 25616136999202--641x12bitTFBGA18012x12x0.8
LPC54605J512ET100E1.71-3.6Cortex®-M4180YESYESYES 51216200999202--641x12bitTFBGA18012x12x0.8
LPC54605J256BD100E1.71-3.6Cortex®-M4180YESYESYES 25616136999202--641x12bitLQFP10014x14x1.4
LPC54605J512BD100E1.71-3.6Cortex®-M4180YESYESYES 51216200999202--641x12bitLQFP10014x14x1.4

开发板型号

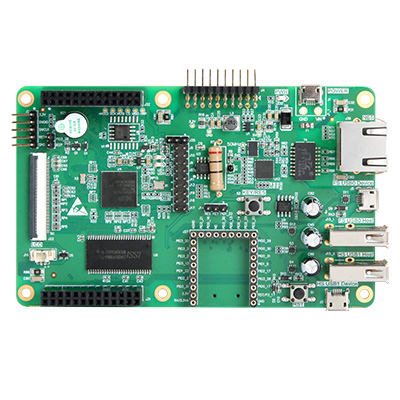

  • Easy-54608M4

支持芯片

  • LPC54605J256ET180E
  • LPC54605J512ET180E
  • LPC54606J256ET180E
  • LPC54607J256ET180E
  • LPC54607J512ET180E
  • LPC54608J512ET180E

开发板型号

  • OM40003

支持芯片

  • LPC54005JBD100E
  • LPC54005JET100E
  • LPC54016JBD100E
  • LPC54016JBD208E
  • LPC54016JET100E
  • LPC54016JET180E
  • LPC54018JBD208E
  • LPC54018JET180E

资料下载

开发板型号

  • LPC54S018-EVK

支持芯片

  • LPC54S005JBD100E
  • LPC54S005JET100E
  • LPC54S016JBD100E
  • LPC54S016JBD208E
  • LPC54S016JET100E
  • LPC54S016JET180E
  • LPC54S018JBD208E
  • LPC54S018JET180E

资料下载

开发板型号

  • OM13077

支持芯片

  • LPC54101J256BD64
  • LPC54101J256UK49
  • LPC54101J512BD64
  • LPC54101J512UK49
  • LPC54102J256BD64
  • LPC54102J256UK49
  • LPC54102J512BD64
  • LPC54102J512UK49

资料下载

开发板型号

  • OM13090

支持芯片

  • LPC54113J128BD64
  • LPC54113J256BD64
  • LPC54113J256UK49
  • LPC54114J256BD64
  • LPC54114J256UK49

资料下载

开发板型号

  • OM13092

支持芯片

  • LPC54605J256ET180E
  • LPC54607J256BD208E
  • LPC54605J512ET180E
  • LPC54607J256ET180E
  • LPC54605J256ET100E
  • LPC54607J512ET180E
  • LPC54605J512ET100E
  • LPC54608J512BD208E
  • LPC54605J256BD100E
  • LPC54608J512ET180E
  • LPC54605J512BD100E
  • LPC54616J256ET180E
  • LPC54606J256BD100E
  • LPC54616J512BD100E
  • LPC54606J256ET100E
  • LPC54616J512BD208E
  • LPC54606J256ET180E
  • LPC54616J512ET100E
  • LPC54606J512BD100E
  • LPC54618J512BD208E
  • LPC54606J512BD208E
  • LPC54618J512ET180E
  • LPC54606J512ET100E

资料下载

开发板型号

  • OM13098

支持芯片

  • LPC54628J512ET180E

资料下载
