| Resolution | Pixel Size | Frame Rate | |||||||
|---|---|---|---|---|---|---|---|---|---|
| PartNo | Description | MP | µm | Optical Format / Size | Shutter Type | fps | Output Interface | Option | Package |
| CHR71000 | 面性Ultra High Resolution 71 Megapixels CMOS Image Sensor | 71 | 3.1 | 35mm | Rolling | 3 | Analog 8x | Mono, RGB | 65p Ceramic PGA |
| CMV12000 | 12Mp High SpeedMachine Vision Global Shutter CMOS Image Sensor | 12.6 | 5.5 | APS-like | Global | 300 | LVDS 64x 600Mbps | Mono, RGB, NIR | 237p Ceramic μPGA |
| CMV2000 | 2MP global shutterCMOS image sensor for machine vision | 2.2 | 5.5 | 2/3" | Global | 340 | LVDS 16x 480Mbps | Mono, RGB, NIR | 95p Ceramic μPGA, 95pLGA or 92p LCC |
| CMV300 | VGA global shutterCMOS image sensor for machine vison | 0.3 | 7.4 | 1/3" | Global | 480 | LVDS 4x 480Mbps or 1parallel CMOS Output (120fps limited) | Mono, RGB | 58p BGA CSP |
| CMV4000 | 4MP global shutterCMOS image sensor for machine vision | 4.2 | 5.5 | 1" | Global | 180 | LVDS16x 480Mbps | Mono, RGB, NIR | 95p Ceramic μPGA, 95pLGA or 92p LCC |
| CMV50000 | 35mm 47.5Mp CMOSMachine Vision Image Sensor | 47.6 | 4.6 | 35mm | Global | 30 | subLVDS 22x 830Mbps | Mono, RGB | 141p Ceramic PGA |
| CMV8000 | 8MP global shutterCMOS image sensor for machine vision | 8.4 | 5.5 | 4/3" | Global | 103 | LVDS 16x 600Mbps | Mono, RGB | 107p Ceramic μPGA |
| Dragster | 线性CMOS image sensor for machine vision | 2k - 16k | 7 x 7; 3.5 x 3.5 | 14.74mm x 3.13mm per2k segment | Global Shutter | 80k | 13 bits DigitalParallel | Mono, RGB | Ceramic LCC, Invar |
| NanEye | Miniature CMOS imagesensor | 62 | 3 | 1 | Rolling | 62 | LVDS 1x 38Mbps | Mono, RGB | 2x2 SGA or modulewith cable |
| NanEye_Stereo | Miniature digital 3Dsolution | 125 | 3 | 2.2 | Rolling | 62 | LVDS 2x 38Mbps | RGB | Module with cable |
产品提供集成式设计，包括高速片上 ADC 和数字接口。这些成像传感器服务于众多应用和市场，包括机器视觉、医疗电子、广播设备、交通管理、科学仪器仪表和摄影。艾迈斯半导体还为内窥镜之类的应用提供微型摄像头模组。

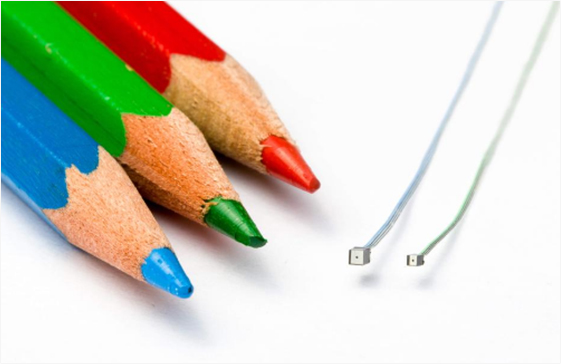

NanEye微型 CMOS 图像传感器配置相应的摄像头模块，可提供仅为 1mm x 1mm 的模组封装。有各种光学选项可供选择。

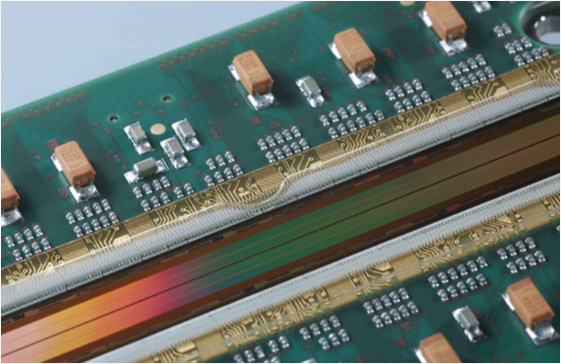

CMOS 行扫描成像传感器系列由 23 个型号组成，提供一系列分辨率和像素尺寸的规格。分辨率选择范围从 2k 像素到 16k 像素，行扫描速率可达 80,000线/秒。
选型表下载
数据手册
- 点击选型表型号，下载数据手册
