| Resolution | Max. Speed | Supply Voltage | Temperature Range | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| PartNo | Description | bit | Interfaces | Output | rpm | OvervoltageProtection | Redundant | V | °C | Package |
| AS5047P | 14-bit on axismagnetic rotary position sensor | 14 or 12 | SPI | SPI,ABI,UVW,PWM | 28000 | 3.3 or 5.0 | -40 to +125 | TSSOP-14 | ||
| AS5047U | 14-bit on-axismagnetic rotary position sensor with up to 14-bit binary incremental pulsecount | 14 | SPI,ABI,UVW,PWM | 28000 | 3.3 or 5.0 | -40 to +125 | TSSOP-14 | |||
| AS5048A | 14-bit rotaryposition sensor with digital angle (interface) and PWM output | 14 | SPI | Digital angle(interface),PWM | 3.3 or 5.0 | -40 to +150 | TSSOP-14 | |||
| AS5147 | 14-bit on-axismagnetic rotary position sensor with 11-bit binary incremental pulse count | 14 or 11 | SPI | ABI,UVW,PWM | 14500 | 3.3 or 5.0 | -40 to +150 | TSSOP-14 | ||

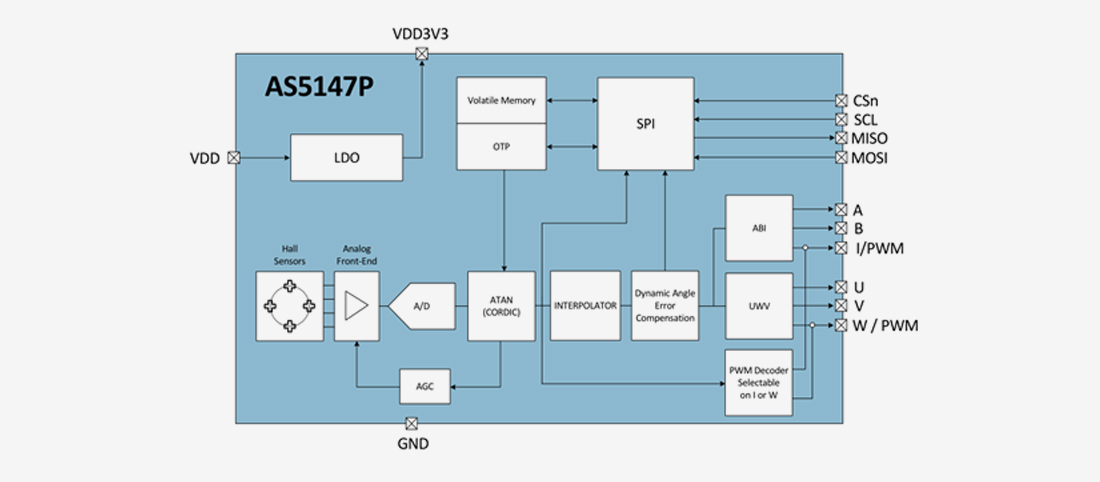

| AS5147P | 14-bit on-axismagnetic rotary position sensor with 12-bit binary incremental pulse count | 14 or 12 | SPI | SPI,ABI,UVW,PWM | 28000 | 3.3 or 5.0 | -40 to +150 | TSSOP-14 | ||
| AS5247 | Redundant 14-biton-axis magnetic rotary position sensor with 11-bit binary incremental pulsecount | 14 or 11 | SPI | ABI,UVW,PWM | 14500 | Yes | 3.3 or 5.0 | -40 to +150 | MLF-40 7x7 | |
| AS5600 | 12-bit on-axismagnetic rotary position sensor with analog or PWM output | 12 | I2C | Analog out / PWM /I2C | No | No | 3-3.6 and 4.5-5.5 | -40 to +125 | SOIC-8 | |
| AS5600L | 12-bit programmableon-axis magnetic rotary position sensor | 12 | analog ratiometric,PWM,I2C | 5 | -40 to 125 | WLCSP,SOIC8 | ||||
| AS5601 | 12-bit on-axismagnetic rotary position sensor with quadrature incremental and push-buttonoutput | 12 | I2C | AB / I2C / PUSH | No | No | 3-3.6 and 4.5-5.5 | -40 to +125 | SOIC-8 | |
| AS5170 | High-resolutionon-axis magnetic angular position sensor | 14 or 12 | Analog ratiometric,PWM or SENT | Yes | 5 | -40 to +150 | SOIC8 | |||
| AS5175 | High-resolutionon-axis magnetic angular position sensor | 14 or 12 | Analog ratiometric or PWM | Yes | 5 | -40 to +150 | SiP (system inpackage) |
高性能的位置传感器，适用于工业、医疗、机器人、汽车和消费类应用。凭借专利技术，所有艾迈斯半导体的位置传感器本身可免受外部杂散磁场干扰，因此非常耐用，无需屏蔽则降低了系统成本。艾迈斯半导体的位置传感器可用于安全规范管理最严格的应用。
旋转磁性位置传感器产品系列能够检测旋转轴上两极磁铁围绕 IC 中心旋转时的绝对角度方位。绝对角度位置可以以 PWM、ABI、UVW 等不同方式输出，或通过主机接口直接读取。根据不同应用的要求，提供从 8 位至 14 位的分辨率可选。这种技术可用于高精度角度位置检测、高速旋转系统和无刷直流电机控制（BLDC 电机）。所有旋转磁性位置传感器都可取代绝对或增量式光学传感器以及其他磁性和电感技术、电位计或磁性开关。
选型表下载
数据手册
- 点击选型表型号，下载数据手册
