• MPS AC-DC控制器

    支持多种控制模式切换的ACDC控制器

MPS AC-DC控制器方案按照Control mode分为PFC/LLC/PFC+LLC控制模式,系列齐全,高集成度,而且无需编程,轻载高效,可配置过流保护,拥有高可靠性,普遍应用于PC和游戏机电源、照明等行业。

AC-DC控制器有多种控制模式可选:PFC/LLC/PFC+LLC,无需编程,从轻负荷到满载效率高,广泛应用于笔记本适配器和TV电源上。

选型表下载
产品名称Vac (min) (V)Vac (max) (V)fsw (max) (kHz)Typical Pmax (W)LLC ControlPFC Control ModeTypeControl MethodVfb (V)Iq (mA)Iop (mA)Capacitive Mode ProtectionAdaptive Dead Time ControlHigh-Voltage Start-UpPackageControl mode
HR1001A    600  Resonant ControllerAnalog   NoSOIC-16LLC
HR1001B   600  Resonant ControllerAnalog   NoSOIC-16LLC
HR1001C   600  Resonant ControllerAnalog   NoSOIC-16LLC
HR1001L   600  Resonant ControllerAnalog   NoSOIC-16LLC
HR1000A   600  Resonant ControllerAnalog   NoSOIC-16LLC
MP4401085305150   ControllerBoost/Buck Boost2.50.461.6   DIP8,SOIC-8PFC
MP4401185305150   ControllerBoost/Buck Boost2.50.461.6   SOIC-8PFC
MP4401485305150   ControllerBoost/Buck Boost2.52.53.5   SOIC-8PFC
MP44014A85305150   ControllerBoost/Buck Boost2.52.53.5   SOIC-8PFC

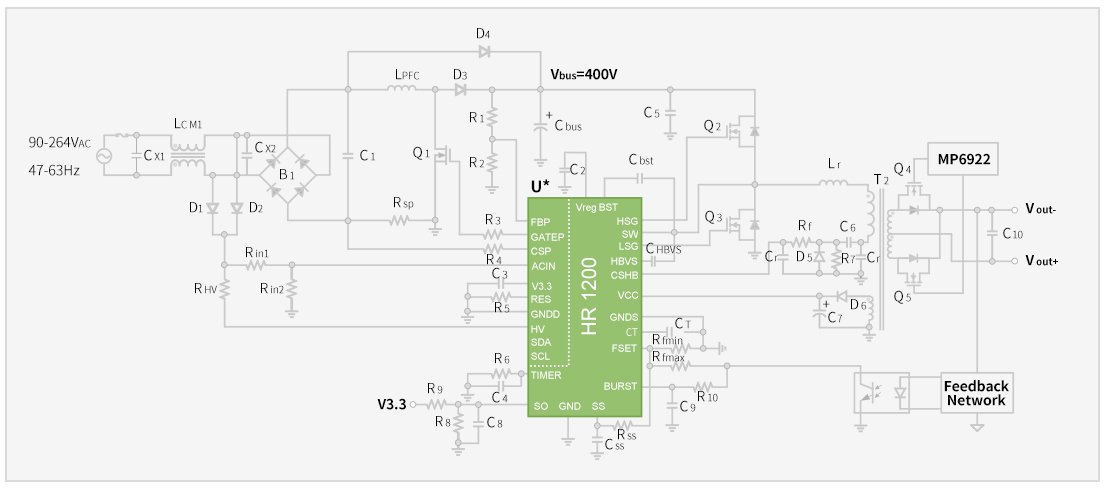

HR1200    AnalogDigital CCM/DCMPFC+LLC Controller      YesSOIC-28,TSSOP28PFC + LLC
HR1201    AnalogDigital CCM/DCMPFC+LLC Controller      NoSOIC-28PFC + LLC
HR1203    AnalogDigital CCM/DCMPFC+LLC Controller      YesSOIC-28,TSSOP28PFC + LLC
HR1204    AnalogDigital CCM/DCMPFC+LLC Controller      NoSOIC-28,TSSOP28PFC + LLC
HR1210    Digital/Current ModeDigital CCM/DCMPFC+LLC Controller      YesSOIC-20,TSSOP20PFC + LLC
数据手册
  • 点击选型表型号,下载数据手册
