Nexperia 小信号MOSFET-广州立功科技股份有限公司

选型表下载

Typenumber	Package version	Package name	Product status	Channel type	Number oftransistors	VDS [max] (V)	VGS [max] (V)	RDSon [max] @ VGS= 10 V (mΩ)	RDSon [max] @ VGS= 5 V (mΩ)	RDSon [max] @ VGS= 4.5 V (mΩ)	RDSon [max] @ VGS= 2.5 V (mΩ)	RDSon [typ] @ VGS= 10 V (mΩ)	RDSon [typ] @ VGS= 5 V (mΩ)	RDSon [typ] @ VGS= 4.5 V (mΩ)	RDSon [typ] @ VGS= 2.5 V (mΩ)	RDSon [max] @ Tj= 175 ^°C (mΩ)	Tj [max] (^°C)	ID [max] (A)	ID [max] @ T =100 ^°C (A)	IDM [max] (A)	QGD [typ] (nC)	QG(tot) [typ] @VGS = 4.5 V (nC)	QG(tot) [typ] @VGS = 10 V (nC)	Ptot [max] (W)	Qr [typ] (nC)	VGSth [typ] (V)	Automotivequalified	Ciss [typ] (pF)	Coss [typ] (pF)	Date
2N7002	SOT23	SOT23	Production	N	1	60	30	5000		5300		2800		3800			150	0.3	0.19	1.2				0.83	30	2	N	31	7	2011-01-24
2N7002NXAK	SOT23	SOT23	Production	N	1	60	20	4500	5200			3000	3700				150	0.3	0.12	0.76	0.09	0.33		0.265		1.6	N	15	3	2019-07-01
2N7002NXBK	SOT23	SOT23	Production	N	1	60	20	2800	3200			2200	2500				150	0.27	0.17	0.9	0.18		1	0.31		1.6	N	24	5	2019-07-01
BSH111BK	SOT23	SOT23	Production	N	1	55	10			4000	5000			2300	2700		150	0.21	0.13	0.85	0.16	0.5		0.302		1	N	19.1	2.7	2014-11-26
BSH205G2	SOT23	SOT23	Production	P	1	-20	8			170	230			120	150		150	-2.3	-1.2	-8	0.8	3.7		0.48		-0.7	Y	418	45	2014-12-15
BSN20BK	SOT23	SOT23	Production	N	1	60	20	2800	3200		4000	2100	2200		2600		150	0.265	0.17	0.9	0.12	0.49		0.31		1	N	20.2	3.1	2014-12-19
BSS84AK	SOT23	SOT23	Production	P	1	-50	20	7500	8500			4500	5700				150	-0.18	-0.12	-0.7	0.09			0.35		-1.6	Y	24	4.5	2011-05-20
BSS84AKM	SOT883	DFN1006-3	Production	P	1	-50	20	7500	8500			4500	5700				150	-0.23	-0.15	-0.9	0.09			0.34		-1.6	Y	24	4.5	2011-05-20
BSS84AKMB	SOT883B	DFN1006B-3	Production	P	1	-50	20	7500	8500			4500	5700				150	-0.23	-0.15	-0.9	0.09			0.36		-1.6	N	24	4.5	2012-06-06
BSS84AKS	SOT363	TSSOP6	Production	P	2	-50	20	7500	8500			4500	5700				150	-0.16	-0.1	-0.64	0.09			0.28		-1.6	Y	24	4.5	2011-05-20
BSS84AKV	SOT666	SOT666	Production	P	2	-50	20	7500	8500			4500	5700				150	-0.17	-0.11	-0.7	0.09			0.33		-1.6	Y	24	4.5	2011-05-20
BSS84AKW	SOT323	SC-70	Production	P	1	-50	20	7500	8500			4500	5700				150	-0.15	-0.095	-0.6	0.09			0.26		-1.6	Y	24	4.5	2011-05-20
BUK6D22-30E	SOT1220	DFN2020MD‑6	Production	N	1	30	20	22		30		16		22		38	175	22	15.7	89	2.2		9.5	19	4	1.5	Y	440	110	2019-04-11
BUK6D23-40E	SOT1220	DFN2020MD‑6	Production	N	1	40	20	23		30		17		22		43	175	19	12	76	2.4		11	15	5.4	1.7	Y	582	101	2017-12-14
BUK6D38-30E	SOT1220	DFN2020MD‑6	Production	N	1	30	20	38		54		29		38		65	175	17	12	68	1.2		5.3	19	2	1.5	Y	266	70	2019-04-12
BUK6D43-40P	SOT1220	DFN2020MD‑6	Production	P	1	-40	20	43		70		30		45		81	175	-14	-8.9	-56	5.4		24	15	8	-2	Y	1260	106	2017-12-14
BUK6D43-60E	SOT1220	DFN2020MD‑6	Production	N	1	60	20	43		53		32		38		93	175	13	8.2	52	2.1		10	15	8.3	1.7	Y	590	60	2017-12-14
BUK6D56-60E	SOT1220	DFN2020MD‑6	Production	N	1	60	20	56		69		42		48		122	175	11	8	44	1.2		7.5	15	6	1.7	Y	435	47	2019-04-03
BUK6D72-30E	SOT1220	DFN2020MD‑6	Production	N	1	30	20	72		100		53		75		124	175	11	7.8	44	0.6		2.2	15	1	1.5	Y	100	30	2019-04-29
BUK6D77-60E	SOT1220	DFN2020MD‑6	Production	N	1	60	20	77		98		59		70		167	175	10.6	7	42	1.2		6.2	18.8	5.4	1.7	Y	305	40	2019-04-04
BUK6D81-80E	SOT1220	DFN2020MD‑6	Production	N	1	80	20	81		97		62		70		197	175	9.8	6.9	39	1.8		9.9	18.8	5.4	1.7	Y	504	43	2019-04-04
BUK6D120-40E	SOT1220	DFN2020MD‑6	Production	N	1	40	20	120		160		85		112		233	175	5.7	3.6	23	0.4		2.4	7.5	3	1.6	Y	113	27	2019-04-29
BUK6D120-60P	SOT1220	DFN2020MD‑6	Production	P	1	-60	20	120				95				256	175	-8	-5.1	-32	2.6		12	15	24	-2.5	Y	724	55	2018-04-03
BUK6D125-60E	SOT1220	DFN2020MD‑6	Production	N	1	60	20	125		146		92		108		271	175	7.4	5.3	30	0.9		4	15	4	1.7	Y	196	24	2019-04-29
BUK6D210-60E	SOT1220	DFN2020MD‑6	Production	N	1	60	20	210		262		160		196		456	175	5.7	4.1	23	0.7		2.5	15	3	1.7	Y	110	16	2019-04-29
BUK6D230-80E	SOT1220	DFN2020MD‑6	Production	N	1	80	20	230		275		175		195		575	175	5.1	3.6	20.4	0.9		4.8	15	7.6	1.7	Y	215	25	2019-04-29
BUK6D385-100E	SOT1220	DFN2020MD‑6	Production	N	1	100	20	385		432		280		300		1078	175	3.7	2.6	15	1		4.5	15	11	1.7	Y	195	13	2019-04-29
BUK7D25-40E	SOT1220	DFN2020MD‑6	Production	N	1	40	20	25				18				46	175	19	12	76	2.6		8.6	15	6.1	3	Y	460	105	2017-12-14
BUK9D23-40E	SOT1220	DFN2020MD‑6	Production	N	1	40	15	23		30		18		22		43	175	19	12	76	2.1		11.5	15	5.3	1.7	Y	637	102	2017-11-13
NX138AK	SOT23	SOT23	Production	N	1	60	20	4500	5200		10000	3000	4000		5000		150	0.19	0.12	0.765	0.2		0.9	0.265		1.1	N	15	2.3	2016-06-10
NX138AKS	SOT363	TSSOP6	Production	N	2	60	20	4500	5200		10000	3000	3700		5000		150	0.17	0.11	0.68	0.2		0.9	0.265		1.1	N	15	2.3	2016-06-10
NX138BK	SOT23	SOT23	Production	N	1	60	20	3500	3800		5000	2100	2200		2600		150	0.265	0.17	0.9	0.12	0.49		0.31		1	N	20.2	3.1	2016-01-29
NX138BKS	SOT363	TSSOP6	Production	N	2	60	20	3500	3800		5000	2100	2200		2600		150	0.21	0.135	0.855	0.12		0.5	0.285		1	N	20	3	2016-06-10
NX138BKW	SOT323	SC-70	Production	N	1	60	20	3500	3800		5000	2100	2200		2600		150	0.21	0.135	0.855	0.12		0.5	0.266		1	N	20	3.1	2016-06-10
NX1029X	SOT666	SOT666	Production	N/P	2	60	20	1600	2000			1000	1300				150	0.33	0.21	1.2	0.1	0.5		0.33		1.6	Y	33	7	2011-08-12
NX2301P	SOT23	SOT23	Production	P	1	-20	8			120	190			100	155		150	-2	-1.2	-6	0.9	4.5		0.4		-0.75	Y	380	135	2011-01-25
NX3008CBKS	SOT363	TSSOP6	Production	N/P	2	30	8			1400	2100			1000	1400		150	0.35	0.23	1.4	0.08	0.52		0.28		0.9	Y	34	6.5	2011-07-19
NX3008CBKV	SOT666	SOT666	Production	N/P	2	30	8			1400	6500			1000	5300		150	0.4	0.26	1.6	0.08	0.52		0.33		0.9	Y	34	6.5	2011-07-19
NX3008NBK	SOT23	SOT23	Production	N	1	30	8			1400	2100			1000	1400		150	0.4	0.25	1.6	0.08	0.52		0.35		0.9	Y	34	6.5	2011-07-19
NX3008NBKS	SOT363	TSSOP6	Production	N	2	30	8			1400	2100			1000	1400		150	0.35	0.23	1.4	0.08	0.52		0.28		0.9	Y	34	6.5	2011-07-19
NX3008NBKV	SOT666	SOT666	Production	N	2	30	8			1400	2100			1000	1400		150	0.4	0.26	1.6	0.08	0.52		0.33		0.9	Y	34	6.5	2011-07-19
NX3008NBKW	SOT323	SC-70	Production	N	1	30	8			1400	2100			1000	1400		150	0.35	0.23	1.4	0.08	0.52		0.26		0.9	Y	34	7	2011-07-19
NX3008PBK	SOT23	SOT23	Production	P	1	-30	8			4100	6500			2800	5300		150	-0.23	-0.145	-1	0.09	0.55		0.35		-0.9	Y	31	6.5	2011-07-19
NX3008PBKS	SOT363	TSSOP6	Production	P	2	-30	8			4100	6500			2800	5300		150	-0.2	-0.125	-0.8	0.09	0.55		0.28		-0.9	Y	31	6.5	2011-07-19
NX3008PBKV	SOT666	SOT666	Production	P	2	-30	8			4100	6500			2800	5300		150	-0.22	-0.14	-0.9	0.09	0.55		0.33		-0.9	Y	31	6.5	2011-07-19
NX3008PBKW	SOT323	SC-70	Production	P	1	-30	8			4100	6500			2800	5300		150	-0.2	-0.13	-0.8	0.09	0.55		0.26		-0.9	Y	31	6.5	2011-07-19
NX3020NAK	SOT23	SOT23	Production	N	1	30	20	4500		5200	13000	2700		3000	4000		150	0.2	0.125	0.8	0.06	0.34		0.3		1.2	N	13	2.6	2012-10-02
NX3020NAKS	SOT363	TSSOP6	Production	N	2	30	20	4500		5200	13000	2700		3000	4000		150	0.18	0.11	0.72	0.06	0.34		0.26		1.2	Y	13	3	2012-07-16
NX3020NAKV	SOT666	SOT666	Production	N	2	30	20	4500		5200	13000	2700		3000	4000		150	0.2	0.12	0.8	0.06	0.34		0.26		1.2	N	13	3	2012-07-16
NX3020NAKW	SOT323	SC-70	Production	N	1	30	20	4500		5200	13000	2700		3000	4000		150	0.18	0.11	0.72	0.06	0.34		0.26		1.2	N	13	2.6	2012-08-17
NX6020CAKS	SOT363	TSSOP6	Production	N/P	2	60	20	4500	5200			3000	3700				150	0.17	0.1	0.68	0.09	0.33		0.22		1.6	N	11	3.4	2017-12-15
NX7002AK	SOT23	SOT23	Production	N	1	60	20	4500	5200			3000	3700				150	0.3	0.12	0.76	0.09	0.33		0.265		1.6	N	11	3.4	2012-02-23
NX7002AKS	SOT363	TSSOP6	Production	N	2	60	20	4500	5200			3000	3700				150	0.17	0.1	0.68	0.09	0.33		0.33		1.6	N	11	3.4	2012-03-02
NX7002AKW	SOT323	SC-70	Production	N	1	60	20	4500	5200			3000	3700				150	0.17	0.1	0.68	0.09	0.33		0.22		1.6	N	11	3.4	2012-03-01
NX7002BK	SOT23	SOT23	Production	N	1	60	20	2800	3200			2200	2500				150	0.27	0.17	0.9	0.18		1	0.31		1.6	N	23.6	4.6	2014-08-19
NX7002BKH	SOT8001	DFN0606-3	Production	N	1	60	20	2800		3000		2000		2100			150	0.35	0.22	1.4	0.11		0.55	0.38		1.6	N	22	3	2019-03-07
NX7002BKM	SOT883	DFN1006-3	Production	N	1	60	20	2800	3200			2200	2500				150	0.35	0.2	0.9	0.18		1	0.35		1.6	N	23.6	4.6	2014-10-02
NX7002BKMB	SOT883B	DFN1006B-3	Production	N	1	60	20	2800	3200			2200	2500				150	0.35	0.2	0.9	0.18		1	0.35		1.6	N	23.6	4.6	2014-10-06
NX7002BKS	SOT363	TSSOP6	Production	N	2	60	20	2800	3200			2200	2500				150	0.24	0.15	0.8	0.18		1	0.285		1.6	N	23.6	4.6	2015-05-12
NX7002BKW	SOT323	SC-70	Production	N	1	60	20	2800	3200			2200	2500				150	0.33	0.15	0.8	0.18		1	0.265		1.5	N	23.6	4.6	2015-03-20
NX7002BKXB	SOT1216	DFN1010B-6	Production	N	2	60	20	2800	3200			2200	2500				150	0.26	0.17	0.8	0.18		1	0.285		1.6	N	23.6	4.6	2014-12-15
PMC85XP	SOT1118	DFN2020-6	Production			-30	12			110	140			85	105		150	-3.4	-1.6	-8	0.95	5.2		0.465		-0.78	N	680	54	2012-06-05
PMCM650CUNE	WLCSP6_3-2	WLCSP6	Production	N	2		8										150				2.9	9		0.556		0.7	N		2	2017-11-08
PMCM950ENE			Production	N	1	60	20	41		47		28		31			150	6.1	3	19	5.9		30	0.78		1.2	N	1160	71	2019-05-13
PMCM4401UNE	WLCSP4_2-2	WLCSP4	Production	N	1	20	8			52	64			43	55		150	5.4	2.7	17	2	6.2		0.4		0.6	N	315	70	2017-04-17
PMCM4401UPE	OL-PMCM4401UPE	WLCSP4	Production	P	1	-20	8			95	130			75	95		150	-4	-2	-13	1.7	5.9		0.4		-0.6	N	420	64	2016-10-07
PMCM4401VNE	OL-PMCM4401VNE	WLCSP4	Production	N	1	12	8			42	54			36	46		150	6	3	19	1.8	6		0.4		0.6	N	335	130	2015-07-24
PMCM4401VPE	OL-PMCM4401VPE	WLCSP4	Production	P	1	-12	8			65	96			55	77		150	-4.9	-2.5	-16	2.2	6.8		0.4		-0.6	N	415	195	2015-07-29
PMCM4402UPE	WLCSP4_2-2	WLCSP4	Production	P	1	-20	8			80	110			65	88		150	-4.2	-2.1	-13	2	6.2		0.4		-0.6	N	450	72	2017-04-17
PMCM6501UNE	WLCSP6_3-2	WLCSP6	Production	N	1	20	8			21	25			17	20		150	8.7	4.2	27	5.8	19		0.556		0.6	N	105	19	2017-04-17
PMCM6501UPE	WLCSP6_3-2	WLCSP6	Production	P	1	-20	8			30	44			22	28		150	-7.3	-3.5	-22	5.4	19.1		0.556		-0.6	N	1420	210	2017-04-17
PMCM6501VNE	OL-PMCM6501VNE	WLCSP6	Production	N	1	12	8			18	22			15	18		150	9.6	4.6	29	4.7	16.1		0.556		0.6	N	920	350	2015-07-29
PMCM6501VPE	OL-PMCM6501VPE	WLCSP6	Production	P	1	-12	8			25	33			19	25		150	-8.2	-4	-25	5	19.6		0.556		-0.6	N	1400	430	2015-07-29
PMCPB5530X	SOT1118	DFN2020-6	Production	N/P	2	20	12			34	46			26	33		150	5.3	2.6	12	1.5	14.4		0.49		0.65	N	660	87	2012-07-04
PMCXB900UE	SOT1216	DFN1010B-6	Production	N/P	2	20	8			620	850			470	620		150	0.6	0.4	2.5	0.1	0.4		0.265		0.7	N	21.3	5.4	2013-10-07
PMCXB900UEL	SOT1216	DFN1010B-6	Production	N/P	2	20	8			620	850			470	620		150	0.6	0.4	2.5	0.1	0.4		0.265		0.7	N	21.3	5.4	2016-06-28
PMCXB1000UE	SOT1216	DFN1010B-6	Production	N/P	2	30	8			670	900			550	660		150	0.59	0.37	2.3	0.1	0.6		0.285		0.7	N	30.3	5.8	2016-06-27
PMDPB30XN	SOT1118	DFN2020-6	Production	N	2	20	12			40	53			32	40		150	5.3	2.6	12	1.5	14.4		0.49		0.65	N	660	87	2012-07-10
PMDPB55XP	SOT1118	DFN2020-6	Production	P	2	-20	12			70	90			55	75		150	-4.5	-2.2	-14	1.65			0.49		-0.65	N	785	80	2012-03-15
PMDPB56XNEA	SOT1118D	DFN2020D-6	Production	N	2	30	12			72	102			55	72		150	3.1	2	12	0.8	2.9		0.485		1	Y	256	31	2016-04-19
PMDPB58UPE	SOT1118	DFN2020-6	Production	P	2	-20	8			67	95			58	74		150	-4.5	-2.3	-14.4	0.9	6.3		0.515		-0.7	N	804	95	2012-06-20
PMDPB70XP	SOT1118	DFN2020-6	Production	P	2	-30	12			87	110			70	89		150	-3.8	-1.9	-11.6	0.95			0.49		-0.7	N	680	54	2012-03-12
PMDPB70XPE	SOT1118	DFN2020-6	Production	P	2	-20	12			79	123			66	98		150	-4.2	-2.1	-12	1.1	5		0.515		-1	N	600	103	2012-06-20
PMDPB80XP	SOT1118	DFN2020-6	Production	P	2	-20	12			102	125			80	95		150	-3.7	-1.7	-11	0.96	5.7		0.485		-0.6	N	550	63	2012-05-31
PMDPB85UPE	SOT1118	DFN2020-6	Production	P	2	-20	8			103	146			82	107		150	-3.7	-1.8	-11.6	1	5.4		0.515		-0.7	N	514	78	2012-06-20
PMDPB95XNE2	SOT1118	DFN2020-6	Production	N	2	30	12			89	117			77	92		150	3.7	1.8	11	0.8	2.9		0.51		1	N	258	31	2016-04-19
PMDT290UCE	SOT666	SOT666	Production	N/P	2	20	8			380	620			290	420		150	0.8	0.5	3.2	0.15	0.45		0.33		0.75	Y	55	15	2011-10-13
PMDT290UNE	SOT666	SOT666	Production	N	2	20	8			380	620			290	420		150	0.8	0.5	3.2	0.15	0.45		0.5		0.75	Y	55	15	2011-09-15
PMDT670UPE	SOT666	SOT666	Production	P	2	-20	8			850	1500			670	1200		150	-0.55	-0.35	-2.2	0.18	0.76		0.33		-0.8	Y	58	21	2011-09-15
PMDXB550UNE	SOT1216	DFN1010B-6	Production	N	2	30	8			670	900			550	660		150	0.59	0.37	2.3	0.1	0.6		0.285		0.7	N	30	6	2015-03-25
PMDXB600UNE	SOT1216	DFN1010B-6	Production	N	2	20	8			620	850			470	620		150	0.6	0.4	2.5	0.1	0.4		0.265		0.7	N	21.3	5.4	2013-09-16
PMDXB600UNEL	SOT1216	DFN1010B-6	Production	N	2	20	8			620	850			470	620		150	0.6	0.4	2.5	0.1	0.4		0.265		0.7	N	21.3	5.4	2016-06-28
PMDXB950UPE	SOT1216	DFN1010B-6	Production	P	2	-20	8			1400	2200			1020	1270		150	-0.5	-0.3	-2	0.1	1.19		0.265		-0.7	N	43	14	2013-09-12
PMDXB950UPEL	SOT1216	DFN1010B-6	Production	P	2	-20	8			1400	2200			1020	1270		150	-0.5	-0.3	-2	0.1	1.19		0.265		-0.7	N	43	14	2016-06-28
PMDXB1200UPE	SOT1216	DFN1010B-6	Production	P	2	-30	8			1400	2300			1200	1700		150	-0.41	-0.26	-1.7	0.16	0.7		0.285		-0.7	N	43.2	5.9	2015-03-25
PMF63UNE	SOT323	SC-70	Production	N	1	20	8			65	74			57	64		150	2.2	1.3	8	0.9	3.9		0.3		0.7	N	289	0.3	2016-04-20
PMF170XP	SOT323	SC-70	Production	P	1	-20	12			200	300			175	240		150	-1	-0.7	-4	0.53	2.6		0.29		-0.9	N	280	43	2011-09-02
PMF250XNE	SOT323	SC-70	Production	N	1	30	12			254	321			212	269		150	1	0.5	4	0.27	1.05		0.275		1	N	81	13	2016-04-28
PMFPB8032XP	SOT1118	DFN2020-6	Production		1	-20	12			102	125			80	95		150	-3.7	-1.7	-11	0.96	5.7		0.48		-0.6	N	550	63	2012-12-21
PMG85XP	SOT363	TSSOP6	Production	P	1	-20	12			115	160			90	125		150			-8	1	4.8		0.375		-0.9	N	560	80	2011-07-11
PMGD175XNE	SOT363	TSSOP6	Production	N	2	30	12			252	319			211	267		150	0.95	0.5	4	0.27	1.05		0.26		1	N	81	13	2016-04-15
PMGD290UCEA	SOT363	TSSOP6	Production	N/P	2	20	8			380	620			290	420		150	0.725	0.45	3	0.15	0.45		0.28		0.75	Y	55	15	2013-04-17
PMH550UNE	SOT8001	DFN0606-3	Production	N	1	30	8			670	900			550	660		150	0.77	0.485	3	0.1			0.38		0.7	N	30	5	2019-03-07
PMH600UNE	SOT8001	DFN0606-3	Production	N	1	20	8			620	710			470	535		150	0.8	0.5	3.2	0.1	0.29		0.37		0.7	N	21	6	2019-03-04
PMH950UPE	SOT8001	DFN0606-3	Production	P	1	-20	8			1400	2200			1000	1400		150	-0.53	-0.36	-2	0.08			0.37		-0.7	N	36	6	2019-03-07
PMH1200UPE	SOT8001	DFN0606-3	Production	P	1	-30	10			1600	2700			1300	1800		150	-0.52	-0.33	-2	0.1			0.38		-0.7	N	33	6	2019-03-04
PMN16XNE	SOT457	SC-74; TSOP6	Production	N	1	20	12			19	24			15	19		150	9.1	4.4	28	2.2	12		0.55		0.65	N	1136	137	2016-01-29
PMN20ENA	SOT457	SC-74; TSOP6	Production		1	40	20	23		30		19		23		44	175	6.2	4.4	25	2.4		11	0.652	5.4	1.7		582	101	2019-04-30
PMN25ENE	SOT457	SC-74; TSOP6	Production	N	1	30	20	24		32		17		22			150	8	3.8	25	2.7		12.6	0.56		1.5	N	597	117	2018-04-16
PMN25ENEA	SOT457	SC-74; TSOP6	Production	N	1	30	20	24		32		17		22		41	175	6.4	4.5	25	2.15		9.5	0.667	4	1.5	Y	440	110	2019-03-14
PMN28UNE	SOT457	SC-74; TSOP6	Production	N	1	20	8			32	45			24	29		150	7.1	3.5	23	1.4	6.2		0.57		0.7	N	490	86	2018-04-16
PMN30ENEA	SOT457	SC-74; TSOP6	Production	N	1	40	20	30		40		23		30		57	175	5.4	3.8	22	1.6		7.8	0.667	4	1.6	Y	440	76	2019-04-02
PMN30UN	SOT457	SC-74; TSOP6	Production	N	1	30	12			40	52			33	42		150	5.7	2.9	18	1.7	7		0.53		0.65	N	635	40	2016-01-29
PMN30UNE	SOT457	SC-74; TSOP6	Production	N	1	20	8			36	47			28	38		150	6	3	19	0.9	5.1		0.53		0.65	N	558	56	2016-01-29
PMN30XP	SOT457	SC-74; TSOP6	Production	P	1	-20	12			34	44			30	35		150	-6.8	-3.3	-21	4	15		0.55		-0.68	N	1575	145	2016-02-23
PMN30XPE	SOT457	SC-74; TSOP6	Production	P	1	-20	12			34	57			28	42		150	-7	-3.4	-21	2.5	11		0.56		-1	N	1465	193	2018-04-16
PMN40ENA	SOT457	SC-74; TSOP6	Production	N	1	60	20	43		53		32		38		93	175	4.2	3	17	2.1		10	0.652	8.3	1.7	Y	590	60	2019-04-11
PMN40ENE	SOT457	SC-74; TSOP6	Production	N	1	30	20	38		70		30		44			150	5.7	2.9	18	1.1		5.6	0.53		1.4	N	294	42	2016-05-24
PMN42XPEA	SOT457	SC-74; TSOP6	Production	P	1	-20	12			46	64			41	56		150	-5.7	-2.9	-16	2.4	11.5		0.5		-1	Y	1410	207	2014-03-25
PMN48XP	SOT457	SC-74; TSOP6	Production	P	1	-20	12			55	82			48	72		150	-4.1	-2.5	-20	1.7	8.7		0.53		-1	N	1000	130	2011-04-22
PMN50EPE	SOT457	SC-74; TSOP6	Production	P	1	-30	20	45		72		35		49			150	-6	-2.9	-19	2.2		12.8	0.56		-2	N	793	134	2018-04-16
PMN52XP	SOT457	SC-74; TSOP6	Production	P	1	-20	12			62	84			50	64		150	-4.7	-2.3	-15	2.1	8.5		0.53		-0.65	N	763	68	2016-01-29
PMN55ENE	SOT457	SC-74; TSOP6	Production	N	1	60	20	60		70		46		52			150	4.5	2.2	14	2.4		12.7	0.56		1.7		646	49	2017-12-18
PMN55ENEA	SOT457	SC-74; TSOP6	Production	N	1	60	20	60		70		46		52		130	175	3.6	2.5	14	1.8		8.8	0.667	6	1.7	Y	450	49	2019-04-26
PMN70EPE	SOT457	SC-74; TSOP6	Production	P	1	-30	20	80		140		60		96			150	-4.4	-2.1	-14	1.2		6.5	0.57		-2	N	370	64	2017-04-25
PMN70XP	SOT457	SC-74; TSOP6	Production	P	1	-20	12			88	116			72	88		150	-3.9	-2	-13	0.9	5		0.53		-0.65	N	550	63	2016-01-29
PMN120ENE	SOT457	SC-74; TSOP6	Production	N	1	60	20	123		146		96		108			150	3.1	1.5	10	1.1		5.9	0.57		1.7	N	275	24	2017-12-18
PMN120ENEA	SOT457	SC-74; TSOP6	Production	N	1	60	20	123		146		96		108			150	2.4	1.5	10	1.1		5.9	0.57		1.7	Y	275	24	2017-04-25
PMN230ENE	SOT457	SC-74; TSOP6	Production	N	1	60	20	222		262		176		196			150	2	1	7	0.7		3.9	0.475		1.7	N	177	15	2018-04-16
PMN230ENEA	SOT457	SC-74; TSOP6	Production	N	1	60	20	222		262		176		196			150	1.6	1	7	0.7		3.9	0.475			Y	177	15	2019-04-26
PMN280ENEA	SOT457	SC-74; TSOP6	Production	N	1	100	20	385		432		285		301		1078	175	1.2	0.9	5	1.1		4.5	0.667	11	1.7	Y	190	13	2019-04-11
PMPB10EN	SOT1220	DFN2020MD‑6	Production	N	1	30	20	12		16		10		13			150	14	6.2	40	1.7		13.7	1.8		1.5	N	840	155	2018-07-11
PMPB10XNE	SOT1220	DFN2020MD‑6	Production	N	1	20	12			14	18			10	12		150	12.9	5.7	36	4.5	23		1.7		0.65	N	2175	235	2012-11-29
PMPB11EN	SOT1220	DFN2020MD‑6	Production	N	1	30	20	14.5		16.5		12		14			150	13	5.7	34	1.71		13.7	1.7		1.5	N	840	155	2012-05-16
PMPB12UNE	SOT1220	DFN2020MD‑6	Production	N	1	20	12			16	20			12	15		150	11.4	5	32	2.1	10.9		0.47		0.65	N	1220	124	2016-04-12
PMPB13XNE	SOT1220	DFN2020MD‑6	Production	N	1	30	12			16	20			13	14		150	11.3	5	32	4.6	24		1.7		0.65	N	2195	155	2012-11-29
PMPB14XP	SOT1220	DFN2020MD‑6	Production	P	1	-12	8			19	25			14	19		150	-12.7	-5.4	-35	5.8	22		1.8		-0.68	N	2303	482	2018-07-03
PMPB15XN	SOT1220	DFN2020MD‑6	Production	N	1	20	12			21	27			18	21		150	10.4	4.6	24	2.6	13.4		1.7		0.65	N	1240	145	2012-09-12
PMPB15XP	SOT1220	DFN2020MD‑6	Production	P	1	-12	12			19	20			15	17		150	-11.8	-5.2	-33	7.3	67		1.7		-0.68	N	2875	570	2012-07-06
PMPB19XP	SOT1220	DFN2020MD‑6	Production	P	1	-20	12			22.5	27			19	21		150	-10.3	-4.5	-30	5.8	28.8		1.7		-0.68	N	2890	250	2012-09-20
PMPB20EN	SOT1220	DFN2020MD‑6	Production	N	1	30	20	19.5		24.5		16.5		20.5			150	10.4	4.6	30	0.67		7.2	1.7		1.5	N	435	90	2012-05-16
PMPB20XNEA	SOT1220	DFN2020MD‑6	Production	N	1	20	12			20	30			16	24		150	7.5	4.8	30	3.1	9.9		0.46		1	Y	930	178	2016-02-22
PMPB20XPE	SOT1220	DFN2020MD‑6	Production	P	1	-20	12			23.5	29			19	22		150	-10.3	-4.5	-30	7.1	30		1.7		-0.68	N	2945	245	2012-11-30
PMPB23XNE	SOT1220	DFN2020MD‑6	Production	N	1	20	12			22	29			19	23		150	10.1	4.4	24	2.2	11.6		1.7		0.65	N	1136	137	2012-11-29
PMPB24EP	SOT1220	DFN2020MD‑6	Production	P	1	-30	20	28		42		24		32			150	-9.5	-4.1	-26	3.8		19	1.8		-1.5	N	1069	121	2018-10-22
PMPB25ENE	SOT1220	DFN2020MD‑6	Production	N	1	30	20	24		32		17		28		40	175	10	4.6	29	2.8		13	2.1		1.5	N	607	113	2018-04-26
PMPB27EP	SOT1220	DFN2020MD‑6	Production	P	1	-30	20	29		43		24		32			150	-8.8	-3.9	-25	3.8		19	1.7		-1.5	N	1070	120	2012-09-10
PMPB29XNE	SOT1220	DFN2020MD‑6	Production	N	1	30	12			33	40			28	32		150	5	3.2	12	2.1	12.4		1.7		0.65	N	1150	110	2012-11-29
PMPB29XPE	SOT1220	DFN2020MD‑6	Production	P	1	-20	12			32.5	38			28	31		150	-5	-3.2	-12	7	30		1.7		-0.68	N	2970	245	2012-12-11
PMPB30XPE	SOT1220	DFN2020MD‑6	Production	P	1	-20	8			34	57			29	45	52	175	-8.5	-3.9	-25	3.2	12.5		2		-1	N	1517	184	2018-02-06
PMPB33XN	SOT1220	DFN2020MD‑6	Production	N	1	30	12			47	76			37	55		150	5.5	2.7	17	1.3	5.1		1.5		0.8	N	505	57	2012-07-04
PMPB33XP	SOT1220	DFN2020MD‑6	Production	P	1	-20	12			37	46			30	35		150	-7.9	-3.5	-22	4	15		1.7		-0.68	N	1575	145	2012-09-06
PMPB43XPE	SOT1220	DFN2020MD‑6	Production	P	1	-20	12			48	59			39	45		150	-5	-3.1	-12	3.4	15.6		1.7		-0.68	N	1550	142	2012-11-30
PMPB47XP	SOT1220	DFN2020MD‑6	Production	P	1	-30	12			58	71			47	54		150	-5	-2.5	-16	4	14		1.7		-0.68	N	1365	105	2012-12-11
PMPB48EP	SOT1220	DFN2020MD‑6	Production	P	1	-30	20	50		76		40		55			150	-6.8	-3	-19	3.2		17	1.7		-1.5	N	860	105	2012-09-10
PMPB50ENE	SOT1220	DFN2020MD‑6	Production	N	1	30	20	43		60		30		39		78	175	6.9	3.2	20	1.3		6	0.0019		1.5	N	271	58	2018-04-26
PMPB55ENEA	SOT1220	DFN2020MD‑6	Production	N	1	60	20	56		69		42		48			150	4	2.5	16	1.2		7.5	1.65		1.7	Y	435	47	2016-04-01
PMPB85ENEA	SOT1220	DFN2020MD‑6	Production	N	1	60	20	95		120		72		85			150	4.4	1.9	12	1.2		6.2	1.6		1.7	Y	305	40	2013-12-19
PMPB95ENEA	SOT1220	DFN2020MD‑6	Production	N	1	80	20	105		120		80		92			150	4.1	1.8	11.2	1.8		9.9	1.6		1.7	Y	504	43	2013-12-18
PMPB100ENE	SOT1220	DFN2020MD‑6	Production	N	1	30	20	72		100		54		70		130	175	5.1	2.4	16	0.8		3.5	2		1.5	N	157	34	2018-04-26
PMPB215ENEA	SOT1220	DFN2020MD‑6	Production	N	1	80	20	230		275		175		195			150	2.8	1.2	7.6	0.9		4.8	1.6		1.7	Y	215	25	2013-12-18
PMT200EPE	SOT223	SC-73	Production	P	1	-70	20	167		225		130		150			150	-2.4	-1.5	-9.7	1.05		10.6	0.8		-2	N	822	47	2018-03-14
PMT280ENEA	SOT223	SC-73	Production	N	1	100	20	385		432		285		301			150	1.5	1	6	1		4.5	0.77		1.7	Y	195	13	2016-07-14
PMT560ENEA	SOT223	SC-73	Production	N	1	100	20	715		805		527		555			150	1.1	0.7	4.4	0.7		2.9	0.75		1.7	Y	112	9	2016-07-14
PMV15ENEA	SOT23	SOT23	Production	N	1	30	20	20		30		15		21		34	175	6.2	4.4	25	2.15		9.5	0.7	4	1.5	Y	440	110	2019-05-16
PMV16XN	SOT23	SOT23	Production	N	1	20	12			20	24			16	18		150	8.6	4.3	27	2.6	13.4		0.51		0.65	N	1240	145	2014-11-11
PMV20EN	SOT23	SOT23	Production	N	1	30	20	21		26		17		21			150	7.6	3.8	24	0.7		7.2	0.51		1.5	N	435	90	2014-05-28
PMV20XNE	SOT23	SOT23	Production	N	1	30	12			23	30			19	22		150	7.2	3.6	24	2.1	12.4		0.51		0.65	N	1150	110	2014-11-10
PMV20XNEA	SOT23	SOT23	Production	N	1	20	12			20	34			16	24		150	6.3	4	25	3.1	9.9		0.46		1	Y	930	178	2016-03-02
PMV25ENEA	SOT23	SOT23	Production	N	1	30	20	24		32		17		22			150	5.5	3.5	22	2.7		12.6	0.46		1.5	Y	597	117	2016-02-26
PMV27UPE	SOT23	SOT23	Production	P	1	-20	8			32	45			27	38		150	-5.6	-2.8	-18	2.5	14.7		0.49		-0.7	N	1820	208	2014-05-14
PMV27UPEA	SOT23	SOT23	Production	P	1	-20	8			32	45			27	38		150	-5.6	-2.8	-18	2.5	14.7		0.49		-0.7	Y	1820	208	2015-10-30
PMV28ENEA	SOT23	SOT23	Production	N	1	30	20	37		51		28		36		64	175	4.4	3.1	18	1.2		5.3	0.66	2	1.5	Y	266	70	2019-05-09
PMV28UNEA	SOT23	SOT23	Production	N	1	20	8			32	45			24	29		150	4.7	2.9	19	1.4	6.2		0.51		0.7	Y	490	86	2016-03-10
PMV30ENEA	SOT23	SOT23	Production	N	1	40	20	30		40		23		30		57	175	4.8	3.4	19	1.6		7.8	0.71	4	1.6	Y	440	76	2019-04-02
PMV30UN2	SOT23	SOT23	Production	N	1	20	12			32	43			24	30		150	5.4	2.7	18	1.4	6.2		0.49		0.65	N	655	70	2014-06-03
PMV30XPEA	SOT23	SOT23	Production	P	1	-20	12			34	57			28	42		150	-5.3	-2.8	-18	2	11		0.49		-1	Y	1465	193	2015-10-30
PMV32UP	SOT23	SOT23	Production	P	1	-20	8			36	46			32	40		150	-4	-2.5	-16	2.2	15.5		0.51		-0.7	N	1890	175	2011-03-15
PMV33UPE	SOT23	SOT23	Production	P	1	-20	8			36	47			30	38		150	-5.3	-2.8	-17.6	2.5	14.7		0.49		-0.7	N	1820	208	2012-06-18
PMV35EPE	SOT23	SOT23	Production	P	1	-30	20	45		72		35		49			150	-5.3	-2.7	-17	2.2		12.8	0.48		-2	N	793	134	2016-07-06
PMV37EN2	SOT23	SOT23	Production	N	1	30	20	36		47		31		37			150	5.6	2.8	16	0.4		3.6	0.51		1.5	N	209	50	2014-05-28
PMV37ENEA	SOT23	SOT23	Production	N	1	60	20	49		64		37		45		106	175	3.5	2.5	14	1.8		8.8	0.71	6	1.7	Y	450	49	2019-05-21
PMV40UN2	SOT23	SOT23	Production	N	1	30	12			44	53			36	43		150	4.4	2.3	16	1.7	7		0.49		0.65	N	635	40	2014-06-03
PMV42ENE	SOT23	SOT23	Production	N	1	30	20	36		54		29		42			150	5.1	2.7	18	1.1		5.5	0.5		1.4	N	281	42	2016-03-16
PMV45EN2	SOT23	SOT23	Production	N	1	30	20	42		54		35		43			150	5.1	2.6	16	0.4		3.6	0.51		1.5	N	209	50	2014-05-28
PMV48XP	SOT23	SOT23	Production	P	1	-20	12			55	81			48	71		150	-3.5	-2.2	-14	1.8	8.5		0.51		-1	N	1000	130	2011-01-24
PMV48XPA	SOT23	SOT23	Production	P	1	-20	12			55	81			48	71		150	-3.5	-2.2	-14	1.8	8.5		0.51		-1	Y	1000	130	2014-03-05
PMV50ENEA	SOT23	SOT23	Production	N	1	30	20	43		60		30		39			150	3.9	2.5	15.5	1.2		6	0.51		1.5	Y	276	55	2016-03-10
PMV50EPEA	SOT23	SOT23	Production	P	1	-30	20	45		72		35		49			150	-4.2	-2.7	-16.9	2.2		12.8	0.48		-2	Y	793	134	2016-06-30
PMV50UPE	SOT23	SOT23	Production	P	1	-20	8			66	81			50	57		150	-3.7	-2	-12.8	2.7	10.5		0.5		-0.6	N	24	106	2012-08-14
PMV50XP	SOT23	SOT23	Production	P	1	-20	12			60	80			48	60		150	-4.4	-2.3	-14.5	1.65	7.7		0.49		-0.65	N	744	65	2014-11-11
PMV52ENEA	SOT23	SOT23	Production	N	1	30	20	70		100		52		70		124	175	3.2		13	0.6		2.2	0.63	1	1.5	Y	100	30	2019-05-07
PMV55ENEA	SOT23	SOT23	Production	N	1	60	20	60		70		46		52		130	175	3.3	2.3	13	1.8		8.8	0.573	6	1.7	Y	450	49	2016-03-02
PMV60ENEA	SOT23	SOT23	Production	N	1	40	20	75		99		60		75		143	175	3	2.1	12	0.8		3.6	0.615	2	1.6	Y	180	36	2019-05-09
PMV65ENEA	SOT23	SOT23	Production	N	1	40	20	75		99		64		79			150	2.7	1.7	3	0.8		4.1	0.49		1.6	Y	160	25	2016-04-28
PMV65UNE	SOT23	SOT23	Production	N	1	20	8			73	83			63	71		150	3.4	1.8	11	0.9	3.8		0.49		0.7	N	291	52	2016-04-25
PMV65UNEA	SOT23	SOT23	Production	N	1	20	8			73	83			63	71		150	2.8	1.8	11	0.9	3.8		0.49		0.7	Y	291	52	2017-03-17
PMV65XP	SOT23	SOT23	Production	P	1	-20	12			74	92			58	67		150	-2.8	-1.8	-16	1.65	7.7		0.48		-0.65	N	744	65	2011-01-24
PMV65XPE	SOT23	SOT23	Production	P	1	-20	12			78	125			67	99		150	-3.3	-1.8	-12	1.1	5		0.48		-1	N	618	80	2014-04-25
PMV65XPEA	SOT23	SOT23	Production	P	1	-20	12			78	125			67	99		150	-3.3	-1.8	-12	1.1	5		0.48		-1	Y	618	80	2014-11-27
PMV74EPE	SOT23	SOT23	Production	P	1	-30	20	90		150		74		116			150	-3.4	-1.8	-11	1.1		5.7	0.51		-2	N	356	60	2019-08-20
PMV75UP	SOT23	SOT23	Production	P	1	-20	12			102	125			77	95		150	-3.2	-1.6	-10	0.9	5		0.49		-0.68	N	550	63	2014-04-25
PMV88ENEA	SOT23	SOT23	Production	N	1	60	20	117		146		88		104		254	175	2.2	1.6	8.9	0.9		4	0.615	4	1.7	Y	196	24	2019-05-07
PMV90ENE	SOT23	SOT23	Production	N	1	30	20	72		100		54		70			150	3.7	1.9	12	0.7		3.6	0.46		1.5	N	160	33	2016-04-20
PMV100ENEA	SOT23	SOT23	Production	N	1	30	20	72		100		54		70			150	3		12	0.7		3.6	0.46		1.5	Y	160	33	2016-03-17
PMV100XPEA	SOT23	SOT23	Production	P	1	-20	12			128	210			97	147		150	-2.4	-1.5	-10	0.75	3.4		0.463		-1	Y	386	54	2016-06-30
PMV120ENEA	SOT23	SOT23	Production	N	1	60	20	123		146		96		108		267	175	2.2	1.5	8.7	0.9		4	0.615	4	1.7	Y	196	24	2016-03-02
PMV130ENEA	SOT23	SOT23	Production	N	1	40	20	120		160		95		120		233	175	2.1	1.5	8	0.4		2.4	0.556	2	1.6	Y	113	27	2014-03-13
PMV160UP	SOT23	SOT23	Production	P	1	-20	8			210	270			170	210		150	-1.2	-0.8	-4	0.5	3.3		0.335		-0.7	N	365	42	2011-09-07
PMV164ENEA	SOT23	SOT23	Production	N	1	60	20	218		262		164		195		473	175	1.6	1	6.5	0.7		2.5	0.64	3	1.7	Y	110	16	2019-05-07
PMV230ENEA	SOT23	SOT23	Production	N	1	60	20	222		262		176		196			150	1.5	0.9	5.9	0.7		3.9	0.48		1.7	Y	177	15	2016-03-02
PMV250EPEA	SOT23	SOT23	Production	P	1	-40	20	240		300		180		220			150	-1.5	-1	-6	0.7		4.7	0.48		-1.7	Y	293	35	2014-03-12
PMV280ENEA	SOT23	SOT23	Production	N	1	100	20	385		432		285		301		1078	175	1.1	0.8	5	1.1		4.5	0.7	11	1.7	Y	190	13	2016-11-22
PMV450ENEA	SOT23	SOT23	Production	N	1	60	20	380		440		300		332			150	0.8	0.5	3.2	0.4		2.4	0.323		1.7	Y	101	10	2016-03-23
PMXB40UNE	SOT1215	DFN1010D-3	Production	N	1	12	8			45	64			34	39		150	3.2	2.5	15	1.7	6.6		0.4		0.65	N	556	107	2013-09-20
PMXB43UNE	SOT1215	DFN1010D-3	Production	N	1	20	8			54	68			42	48		150	3.2	2.3	12.8	0.9	5.7		0.4		0.65	N	551	57	2013-09-19
PMXB56EN	SOT1215	DFN1010D-3	Production	N	1	30	20	55		65		49		56			150	3.2	2.8	15	0.4		3.6	0.4		1.5	N	209	50	2013-09-23
PMXB65ENE	SOT1215	DFN1010D-3	Production	N	1	30	20	67				44					150	3.2	2.5	12.8	0.9		6	0.4		1.4	N	295	40	2013-09-10
PMXB65UPE	SOT1215	DFN1010D-3	Production	P	1	-12	8			72	98			59	78		150	-3.2	-2.1	-13	1.9	6.7		0.317		-0.68	N	634	167	2014-02-04
PMXB75UPE	SOT1215	DFN1010D-3	Production	P	1	-20	8			85	110			69	86		150	-2.9	-1.9	-12	2.1	6.8		0.317		-0.68	N	608	75	2014-02-04
PMXB120EPE	SOT1215	DFN1010D-3	Production	P	1	-30	20	120		170		100		125			150	-2.4	-1.5	-10	1.1		6.2	0.4		-1.5	N	309	41	2013-09-17
PMXB350UPE	SOT1215	DFN1010D-3	Production	P	1	-20	8			447	645			350	450		150	-1.2	-1	-5	0.28	1.25		0.36		-0.7	N	116	16.5	2013-09-19
PMXB360ENEA	SOT1215	DFN1010D-3	Production	N	1	80	20	450		540		345		390			150	1.1	0.7	4.4	0.6		3	0.4		1.7	Y	130	20	2013-09-16
PMZ130UNE	SOT883	DFN1006-3	Production	N	1	20	8			150	220			120	160		150	1.8	1.2	8	0.44	1.6		0.35		0.7	N	93	18	2015-03-12
PMZ200UNE	SOT883	DFN1006-3	Production	N	1	30	8			250	310			210	240		150	1.4	0.9	5	0.4	1.6		0.35		0.7	N	89	11	2015-03-12
PMZ290UNE2	SOT883	DFN1006-3	Production	N	1	20	8			320	480			270	360		150	1.2	0.8	4	0.2	0.8		0.35		0.7	N	46	9.6	2015-03-24
PMZ320UPE	SOT883	DFN1006-3	Production	P	1	-30	8			510	770			430	570		150	-1	-0.6	-4	0.3	1.4		0.35		-0.7	N	122	11	2015-03-24
PMZ350UPE	SOT883	DFN1006-3	Production	P	1	-20	8			450	645			330	420		150	-1.4	-0.7	-2.8	0.25	1.3		0.36		-0.7	N	127	34	2014-05-14
PMZ390UNE	SOT883	DFN1006-3	Production	N	1	30	8			470	620			390	460		150	0.9	0.6	4	0.2	0.8		0.35		0.7	N	41	6	2015-03-12
PMZ550UNE	SOT883	DFN1006-3	Production	N	1	30	8			670	900			550	660		150	0.59	0.37	2.3	0.1	0.6		0.31		0.7	N	30.3	5.8	2015-03-25
PMZ600UNE	SOT883	DFN1006-3	Production	N	1	20	8			620	850			470	620		150	0.6	0.4	2.5	0.1	0.4		0.36		0.7	N	21.3	5.4	2014-05-09
PMZ600UNEL	SOT883	DFN1006-3	Production	N	1	20	8			620	850			470	620		150	0.6	0.4	2.5	0.1	0.4		0.36		0.7	N	21.3	5.4	2016-06-28
PMZ950UPE	SOT883	DFN1006-3	Production	P	1	-20	8			1400	2200			1020	1270		150	-0.5	-0.3	-2	0.1	1.19		0.36		-0.7	N	43	14	2014-05-07
PMZ950UPEL	SOT883	DFN1006-3	Production	P	1	-20	8			1400	2200			1020	1270		150	-0.5	-0.3	-2	0.1	1.19		0.36		-0.7	N	43	14	2016-06-28
PMZ1200UPE	SOT883	DFN1006-3	Production	P	1	-30	8			1400	2300			1200	1700		150	-0.41	-0.26	-1.7	0.2	0.7		0.31		-0.7	N	43.2	5.9	2015-03-25
PMZB150UNE	SOT883B	DFN1006B-3	Production	N	1	20	8			200	270			170	200		150	1.5	1	6	0.44	1.6		0.35		0.7	N	93	18	2015-03-23
PMZB200UNE	SOT883B	DFN1006B-3	Production	N	1	30	8			250	310			210	240		150	1.4	0.9	5	0.4	1.6		0.35		0.7	N	89	11	2015-03-12
PMZB290UNE2	SOT883B	DFN1006B-3	Production	N	1	20	8			320	480			270	360		150	1.2	0.8	4	0.2	0.8		0.35		0.7	N	46	9.6	2015-03-24
PMZB320UPE	SOT883B	DFN1006B-3	Production	P	1	-30	8			510	770			430	570		150	-1	-0.6	-4	0.3	1.4		0.35		-0.7	N	122	11	2015-03-24
PMZB350UPE	SOT883B	DFN1006B-3	Production	P	1	-20	8			450	645			330	420		150	-1.4	-0.7	-2.8	0.25	1.3		0.36		-0.7	N	127	34	2012-08-24
PMZB390UNE	SOT883B	DFN1006B-3	Production	N	1	30	8			470	620			390	460		150	0.9	0.6	4	0.2	0.8		0.35		0.7	N	41	6	2015-03-12
PMZB550UNE	SOT883B	DFN1006B-3	Production	N	1	30	8			670	900			550	660		150	0.59	0.37	2.3	0.1	0.6		0.31		0.7	N	30.3	5.8	2015-03-25
PMZB600UNE	SOT883B	DFN1006B-3	Production	N	1	20	8			620	850			470	620		150	0.6	0.4	2.5	0.1	0.4		0.36		0.7	N	21.3	5.4	2014-07-23
PMZB600UNEL	SOT883B	DFN1006B-3	Production	N	1	20	8			620	850			470	620		150	0.6	0.4	2.5	0.1	0.4		0.36		0.7	N	21.3	5.4	2017-06-06
PMZB950UPE	SOT883B	DFN1006B-3	Production	P	1	-20	8			1400	2200			1020	1270		150	-0.5	-0.3	-2	0.1	1.19		0.36		-0.7	N	43	14	2014-07-28
PMZB950UPEL	SOT883B	DFN1006B-3	Production	P	1	-20	8			1400	2200			1020	1270		150	-0.5	-0.3	-2	0.1	1.19		0.36		-0.7	N	43	14	2017-06-06
PMZB1200UPE	SOT883B	DFN1006B-3	Production	P	1	-30	8			1400	2300			1200	1700		150	-0.41	-0.26	-1.7	0.2	0.7		0.31		-0.7	N	43.2	5.9	2015-03-25

微处理器

电源与外围

汽车电子

物联网（IoT）解决方案

汽车电子解决方案

Nexperia 小信号MOSFET

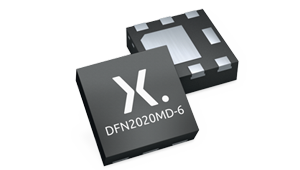

可选封装SOT 23、SOT 457、DFN 1010和DFN 2020、WLCSP
汽车符合性（AEC-Q101）

关键参数

典型应用

微处理器

电源与外围

汽车电子

物联网（IoT）解决方案

汽车电子解决方案

Nexperia 小信号MOSFET

可选封装SOT 23、SOT 457、DFN 1010和DFN 2020、WLCSP汽车符合性（AEC-Q101）

关键参数

典型应用

可选封装SOT 23、SOT 457、DFN 1010和DFN 2020、WLCSP
汽车符合性（AEC-Q101）
