| Family | Part Number | Outputs # and Rdson | Total Outputs | Operating Voltage (V) | Max.continuous current for all output ON (A) | Max continuous current for | Peak current(A) | Max PWM frequency | Package | Pin to Pin Compatibility | SW Compatibility | Application |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12V Automotive | ||||||||||||
| MC12XS2 | MC33981ABHFK | 1x4mΩ | 1 | 6-27 | 40 | 40 | 75 | 60kHz | 16-pin PQFN | - | - | 燃油泵/水泵 |
| MC33982CHFK | 1x2mΩ | 1 | 6-27 | 60 | 41 | 120 | 1kHz | 16-pin PQFN | √ | √ | 保险丝盒 | |
| MC33984CHFK | 2x4mΩ | 2 | 6-27 | 30 | 21 | 80 | 1kHz | 16-pin PQFN | 保险丝盒 | |||
| MC33988CHFK | 2x8mΩ | 2 | 6-27 | 30 | 10.5 | 40 | 1kHz | 16-pin PQFN | 保险丝盒 | |||
| MC12XS3 | MC07XS3200EK | 2x7mΩ | 2 | 6-20 | 6 | 21 | 89.9 | 800Hz | 32-pin SOICEP | - | √ | BCM |
| MC10XS3425EK | 2x10mΩ,2x 25mΩ | 4 | 6-20 | 6 | 19.2 9.2 | 77.6 38.8 | 800Hz | 32-pin SOICEP | - | BCM | ||
| MC10XS3412DHFK | 2x10mΩ,2x 12mΩ | 4 | 6-20 | 6 | 18.9 | 78 | 1kHz | 24-pin PQFN | √ | BCM | ||
| MC10XS3435DHFK | 2x10mΩ, 2x 35mΩ | 4 | 6-20 | 6 | 18.9 9.4 | 78 39.5 | 1kHz | 24-pin PQFN | BCM | |||
| MC15XS3400DHFK | 4x15mΩ | 4 | 6-20 | 6 | 18.9 | 78 | 1kHz | 24-pin PQFN | BCM/BMS | |||
| MC35XS3400DHFK | 4x35mΩ | 4 | 6-20 | 6 | 9.4 | 39.5 | 1kHz | 24-pin PQFN | BCM/BMS | |||
| MC09XS3400AFK | 4x9mΩ | 4 | 6-20 | 6 | 21.6 | 89.4 | 800Hz | 24-pin PQFN | BCM | |||
| MC12XS3 | MC10XS3535HFK | 3x10mΩ,2x 35mΩ | 5 | 6-20 | 5.5 2.8 | 17.6|12.1 5.7 | 63.2 28 | 400Hz | 24-pin PQFN | √ | √ | BCM |
| MC35XS3500HFK | 5x35mΩ | 5 | 6-20 | 2.8 | 5.7 | 28 | 400Hz | 24-pin PQFN | BCM | |||
| MC06XS3517AFK | 3x6mΩ, 2x 17mΩ | 5 | 6-20 | 5.5 2.8 | 17 9 | 96 48 | 400Hz | 24-pin PQFN | BCM | |||
| MC12XS6 | MC07XS6517BEK | 3x7mΩ, 2x 17mΩ | 5 | 7-18 | 11 5.5 | 17.6 8.8 | 100 42 | 400Hz | 54-pin SOICEP | √ | √ | BCM |
| MC17XS6500BEK | 5x17mΩ | 5 | 7-18 | 5.5 | 8.8 | 42 | 400Hz | 32-pin SOICEP | BCM/BMS | |||
| MC40XS6500EK | 5x40mΩ | 5 | 7-18 | 3.9 | 6.4 | 28 | 400Hz | 32-pin SOICEP | BCM/BMS | |||
| MC08XS6421EK | 2x8mΩ, 2x 21mΩ | 4 | 7-18 | 11 5.5 | 17.6 8.8 | 96 40 | 400Hz | 32-pin SOICEP | BCM | |||
| MC17XS6400EK | 4x17mΩ | 4 | 7-18 | 5.5 | 8.8 | 42 | 400Hz | 32-pin SOICEP | BCM | |||
| MC25XS6300EK | 3x25mΩ | 3 | 7-18 | 4.5 | 8.3 | 31 | 400Hz | 32-pin SOICEP | BCM | |||
| MC10XS6325EK | 2x10mΩ, 1x 25mΩ | 3 | 7-18 | 9 4.5 | 16 8.3 | 76 31 | 400Hz | 32-pin SOICEP | BCM | |||
| MC10XS6200EK | 2x10mΩ | 2 | 7-18 | 9 | 16 | 76 | 400Hz | 32-pin SOICEP | BCM | |||
| MC10XS6225EK | 1x10mΩ, 1x 25mΩ | 2 | 7-18 | 9 4.5 | 16 8.3 | 76 31 | 400Hz | 32-pin SOICEP | BCM | |||
| 24V Automotive | ||||||||||||
| MC06XS4200BFK | 2x6mΩ | 2 | 8-36 | 9 | 15 | 90 | 1kHz | 24-pin PQFN | √ | √ | BCM/BMS/Motor | |
| MC10XS4200BFK | 2x10mΩ | 2 | 8-36 | 6 | 9 | 55 | 1kHz | 24-pin PQFN | BCM/BMS/Motor | |||
| MC24XS4 | MC20XS4200BFK | 2x20mΩ | 2 | 8-36 | 3 | 4.5 | 27.5 | 1kHz | 24-pin PQFN | BCM/BMS/Motor | ||
| MC22XS4200BEK | 2x22mΩ | 2 | 8-36 | 3 | 4.3 | 26.4 | 1kHz | 32-pin SOICEP | √ | √ | BCM/BMS/Motor | |
| MC50XS4200BEK | 2x50mΩ | 2 | 8-36 | 1.2 | 1.7 | 10.3 | 1kHz | 32-pin SOICEP | BCM/BMS/Motor | |||
恩智浦的高边驱动产品有超过15年的生产经验，旨在以更高的精度控制、保护和诊断BCM、ECU或接线盒中的各种类型负载。产品主要应用范围是：12V\24VBCM上车灯电机控制，保险丝盒，继电器控制。

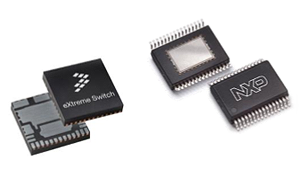

NXP的高边智能开关简称eSwitch，分为12V（常用车）和24V（卡车，公交车）。
对于12V产品，通道数从1路到5路不等，稳态输出电流最大到40A，峰值电流可以达到100A。对于24V产品，通道数都是2路，可以将2路输出端并联起来成1路使用，使稳态过流能力翻倍。稳态电流最大可以达到30A，峰值电流到90A。

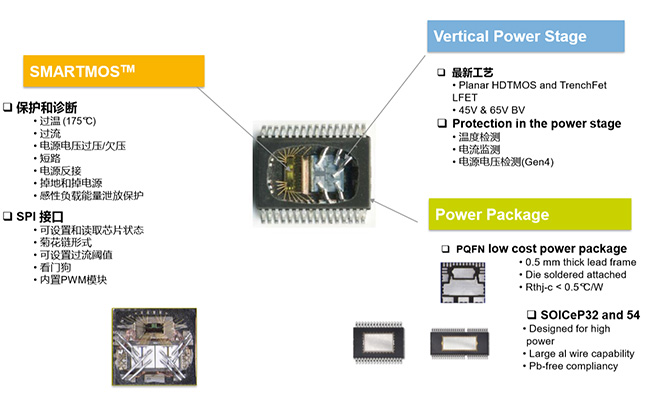

高边驱动芯片内部结构
高边驱动芯片优势
- 可靠性
- 诊断功能多，具有安全失效模式的保护特性
- 多样性
- 支持SPI通信，输出端电流检测镜像功能
- 诊断性
- 支持ASIL-B, 拥有保护，诊断，失效模式，有safety manual 和FMEDA文档
- 高准确度
- 准确检测芯片的电源电压和温度
- 高集成度
- 支持菊花链形式的SPI通信
- 汽车级专家支持
- 全力支持客户需求
- 下一代产品展望
- Q100 family，极低的内阻值, 48V family, smart low RDSonswitches ……
