• onsemi USB Type-C & USB PD

    提供完整的USB Type-C和完整的USB PD的方案

USB Type-C在未来将会取代现有的Micro-USB(USB2.0)的连接方式,成为重要的USB连接方式。onsemi可以提供完整的USB Type-C和完整的USB PD的方案。

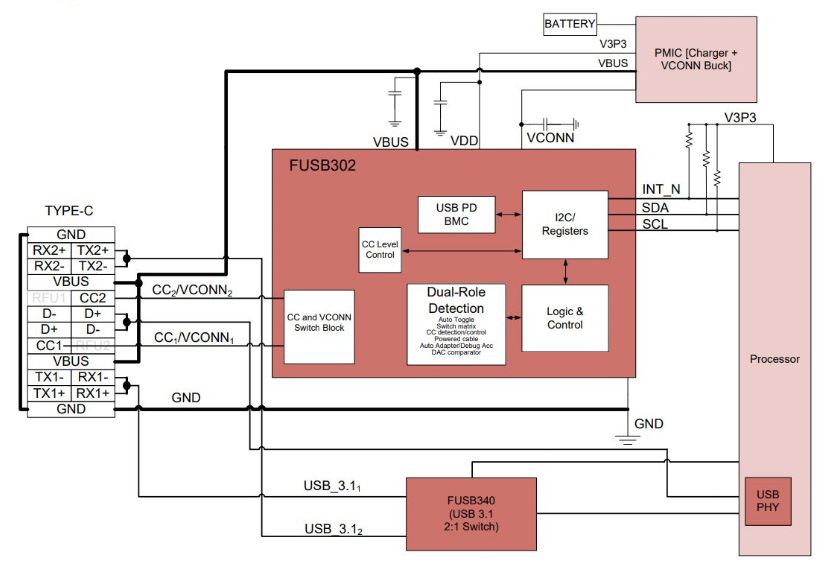

以下是USB Type-C and USB PD的完整拓扑:

Typc-Controller(FUSB302):相当于USB Type C的PHY芯片,MCU通过IIC配置该芯片从而实现USB Type C协议的通讯
在Type C接口,由于Type-C的接口对称性,并且USB 3.0以下通信过程都仅能使能RX1TX1或者RX2TX2,因此就会需要一个接口转换芯片做开关切换。
除此之外,因为Type-C接口会需要会传高速信号和传输电能,因此加入相关的ESD保护器件,可以提高整个Type-C接口的可靠性和稳定性。

选型表下载
ProductDatasheetDescriptionComplianceStatusMode SupportPower Delivery Communication SupportIC FeaturesPackage Type
FUSB3307FUSB3307/D(583kB)USB Power Delivery 3.0 Adaptive Source Charging ControllerPb-free
Halide free
Product PreviewDFP (Source)YesSOIC-14 NB
FAN6292CMXFAN6292CMX/D(229kB)Compact Secondary-Side Synchronous Rectifier Control and USB Type-CControlPb-free
Halide free
ActiveSOIC-8
FSA1153FSA1153/D(178kB)DP3T USB Type C Audio and UART Analog Switch with OVPPb-free
Halide free
ActiveWLCSP-12
FUSB251FUSB251/D(273kB)USB Type-C™ CC and SBU Protection ICPb-free
Halide free
ActiveWLCSP-15
FUSB252FUSB252/D(1324kB)High Speed Digital (HSD) Port Protection Switch with Type-C CCPb-free
Halide free
ActiveDFP (Source)YesThermal shutdown
Under-Voltage Lockout (UVLO)
UQFN-16
FUSB301FUSB301/D(223kB)Autonomous USB Type-C Controller with Super Speed Switch ControlPb-free
Halide free
ActiveDFP (Source)YesExternal switch pin
Low power disable mode
X2QFN-10
FUSB301AFUSB301A/D(230kB)Autonomous USB Type-C Controller with Configurable I2C AddressPb-free
Halide free
ActiveUFP (Sink)NoDebug Accessory SupportX2QFN-12
FUSB302BFUSB302B/D(302kB)Programmable USB Type-C Controller with PD (Default SNK)Pb-free
Halide free
AEC Qualified
PPAP Capable
ActiveDFP (Source)
DRP
UFP (Sink)
YesDebug Accessory SupportWLCSP-9
WQFN-14
FUSB302TFUSB302T/D(199kB)Programmable USB Type-C Controller with PD (Default SRC)Pb-free
Halide free
ActiveDFP (Source)
DRP
UFP (Sink)
YesAutonomous DRP ToggleWQFN-14
FUSB303FUSB303/D(207kB)Autonomous USB Type-C Port Controller with I2C and GPIO ControlPb-free
Halide free
ActiveDFP (Source)
DRP
UFP (Sink)
NoX2QFN-12
FUSB307BFUSB307B/D(450kB)USB Type-C Port Controller with USB-PDPb-free
Halide free
AEC Qualified
PPAP Capable
ActiveDRP
UFP (Sink)
Yes-WQFN-16
FUSB308BVFUSB308B/D(429kB)USB Type-C Port Controller with USB-PDAEC Qualified
PPAP Capable
Pb-free
Halide free
ActiveWQFN-16
FUSB3301FUSB3301/D(106kB)USB Type-C Source-Only ControllerPb-free
Halide free
ActiveDFP (Source)NoAutonomous CC DetectionWDFN-10
FUSB380FUSB380/D(207kB)Autonomous USB Type-C™ Cable MarkerPb-free
Halide free
ActiveWLCSP-12
FUSB380CFUSB380C/D(271kB)Autonomous USB Type-C™ Cable MarkerPb-free
Halide free
ActiveWLCSP-12
